18. TROUBLE DIAGNOSIS

B–64113EN–1/01

1112

Machine alarms (External alarm message and Macro alarm) can be

diagnosed on the trouble diagnosis guidance screen in addition to CNC

alarms.

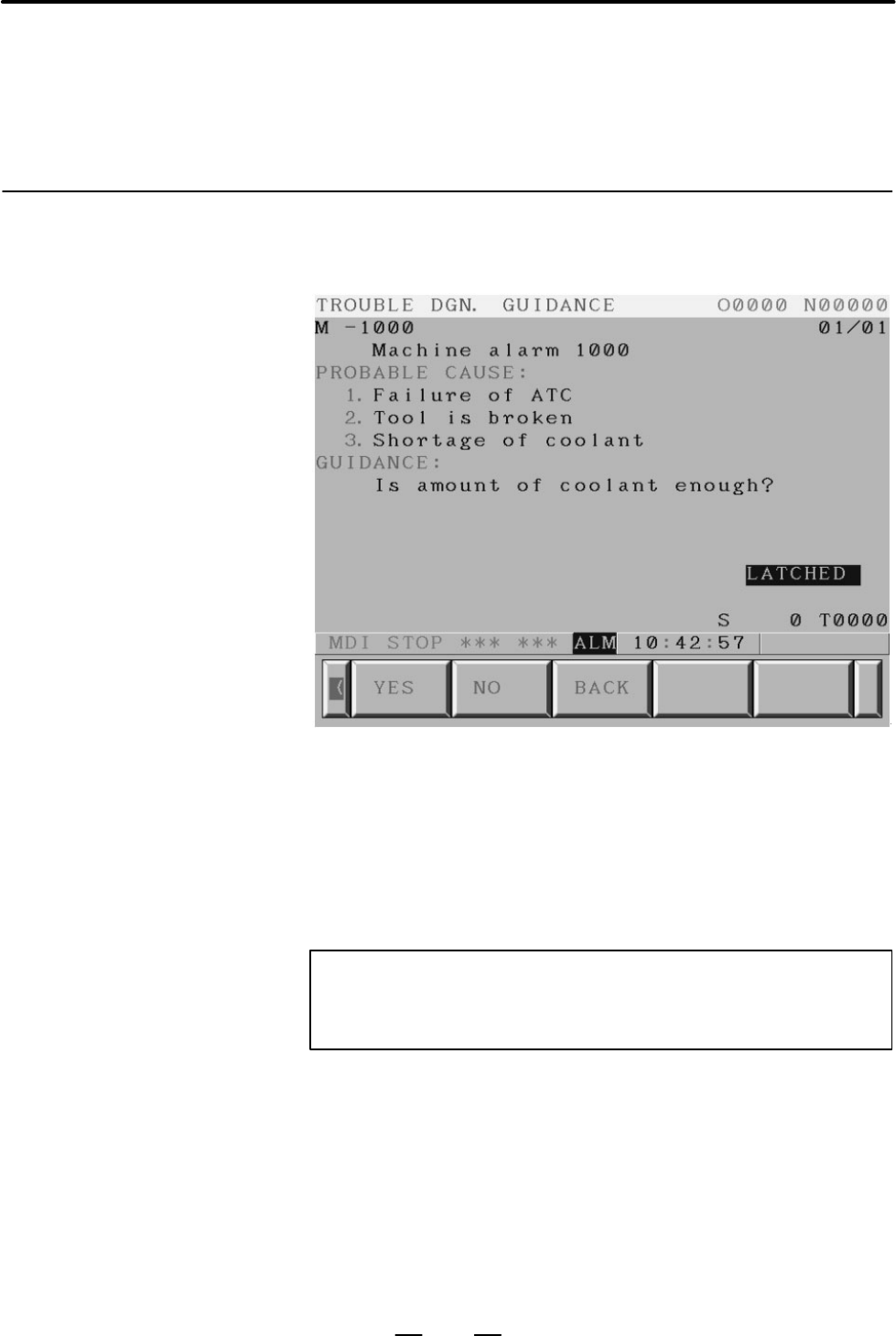

Example of a trouble diagnosis guidance screen

The following alarms can be diagnosed.

1 External alarm message (Alarm No.1000–1999)

2 Macro alarm (#3000) (Alarm No.3000–3200)

NOTE

Option functions are separately needed to use the above

alarms.

The following environment is needed to make the data which is displayed

on the trouble diagnosis guidance screen.

1 Microsoftr Excel 97 or later version

2 MS–DOSr (Command prompt of Microsoftr Windowsr is available.)

3 A personal computer included an operating system (OS) on which the

above application can be executed.

18.2

MACHINE ALARM

DIAGNOSIS

18.2.1

Outline

Kind of diagnosed

alarms

Required environment
