B-75074EN/04 INSTALLATION 3.INSTALLATION

- 95 -

Using the directory configuration shown above enables you to

use three backup levels, each of which is selected according to

what was done.

<1> Backup is performed after i CELL is installed and

confirmed for normal operation.

<2> Backup is performed after a new machine is connected to i

CELL, or any CIMPLICITY dialog box is changed.

<3> Back up NC data each time it is changed, regardless of <1>

or <2>.

Note on installation on Windows 2000 or Windows XP

If the NC program root directory is not in the i CELL installation

directory or in a drive other than that contains the i CELL installation

directory, you need to add the right to access the entities in the NC

program root directory.

Add the access right using the following procedure:

<1> Select [Start] → [Programs] → [Accessories] → [Command

Prompt] to display the command prompt.

<2> Move to the NC program root directory.

Example) When the NC program root directory is "D:\NcData",

enter "cd /d D:\NcData".

<3> Execute the following command:

cacls nc-program-root-directory /t /e /g everyone:f

Example) "cacls D:\NcData /t /e /g everyone:f" when the NC

program root directory is "D:\NcData"

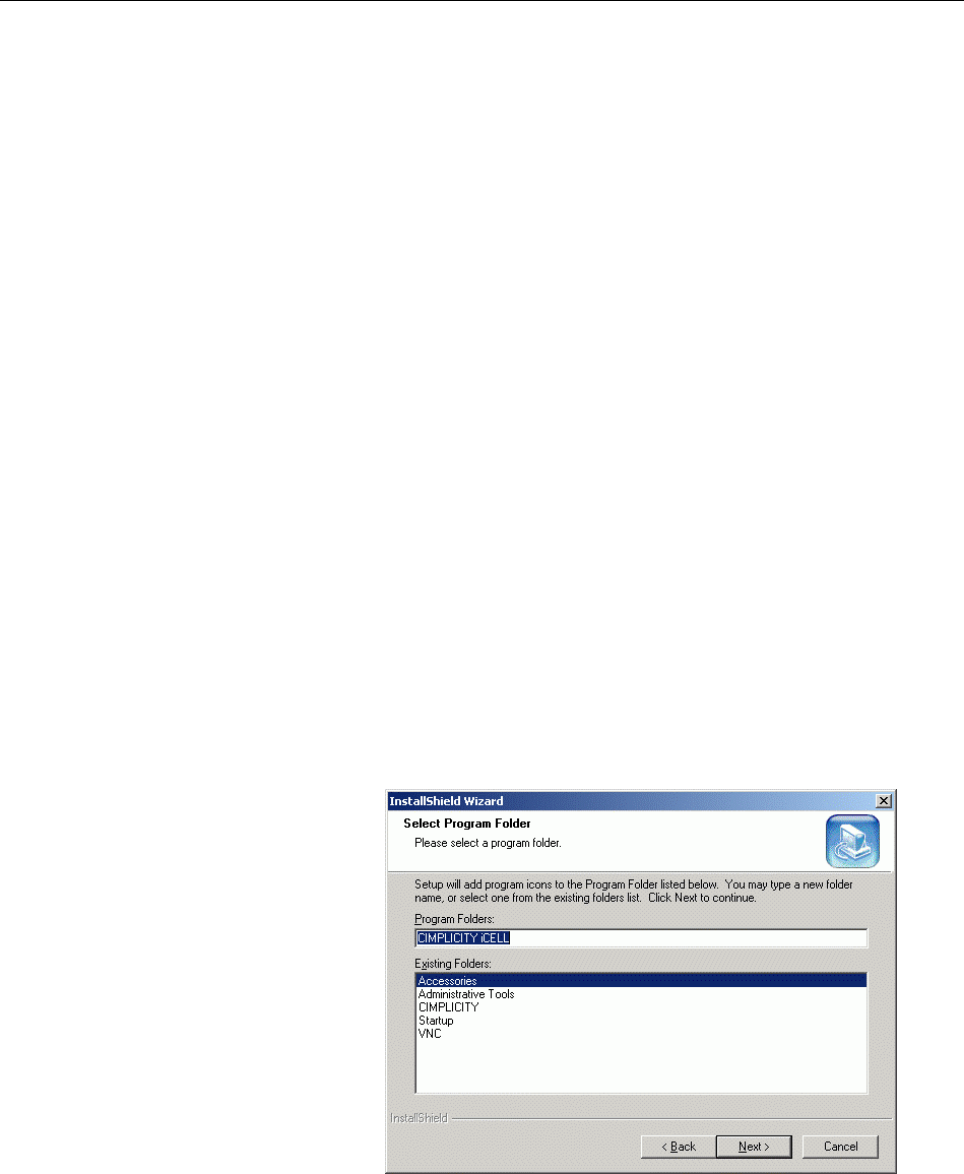

5. Select a program folder where icons are to be saved. Usually

select the default value displayed on the screen, and click the

[Next] button.
