6.4.4 Setting Examples

6.4.4.1 Using the point name rules of another project

It is possible to copy the point name rules of one project created in CNC

Communication Mode to another project in CNC Communication Mode.

(1) Create a new CNC Communication Mode project.

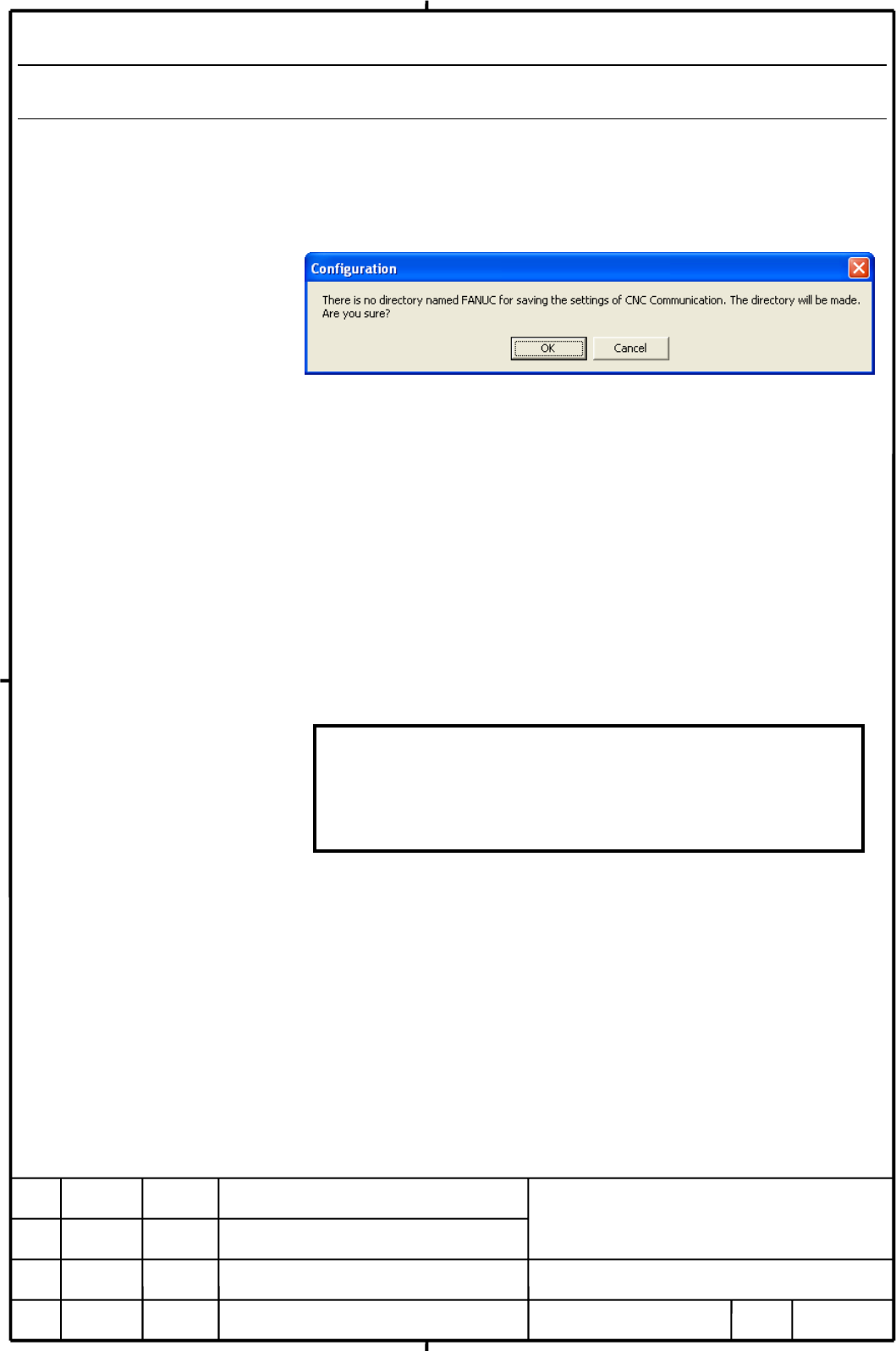

When the following message appears, click <OK>, and wait for the

Configuration dialog box to be activated.

(2) When the Configuration dialog box appears, copy the point name rule

file created for another project in CNC Communication Mode to the new

project before placing a check in the [Point Name Rule Setting]

checkbox in [Property]. There is no need to exit from the

Configuration dialog box. The point name rule file is located in the

following folder:

project-folder¥Fanuc¥Data¥PointNameRule.ini

(3) After copying the point name rule file to the new project, place a check

in the [Point Name Rule Setting] checkbox in [Property] in the

Configuration dialog box.

When the Point Name Rule Setting dialog box appears, the point name rule

created for the project is displayed.

CAUTION

Be sure to copy the point name rule file PointNameRule.ini

before placing a check in [Point Name Rule Setting] with

[Property] in the Configuration dialog box.
