2.ABOUT THE FANUC CIMPLICITY i CELL GENERAL B-75074EN/04

- 4 -

2 ABOUT THE FANUC CIMPLICITY i CELL

The FANUC CIMPLICITY i CELL is a software package for centrally

manage multiple CNC machine tools connected to a network. The i

CELL supports normal operations such as part machining and

machining result collection to improve productivity, and also supports

prompt recovery in case of a failure. With the enhanced network

function, the system can be remotely monitored from a personal

computer or i-mode cellular phone.

The i CELL has an operation support function and a remote support and

service function for supporting failure recovery. The major operation

support capabilities are:

• NC program management:

Input/output of machining programs between the personal

computer and each NC

• CNC display and operation:

CNC state display and operation handling from the personal

computer

• Operation monitoring:

Monitoring of machine operation and collection of machining

results

• Maintenance:

Saving and restoring of a variety of NC data items

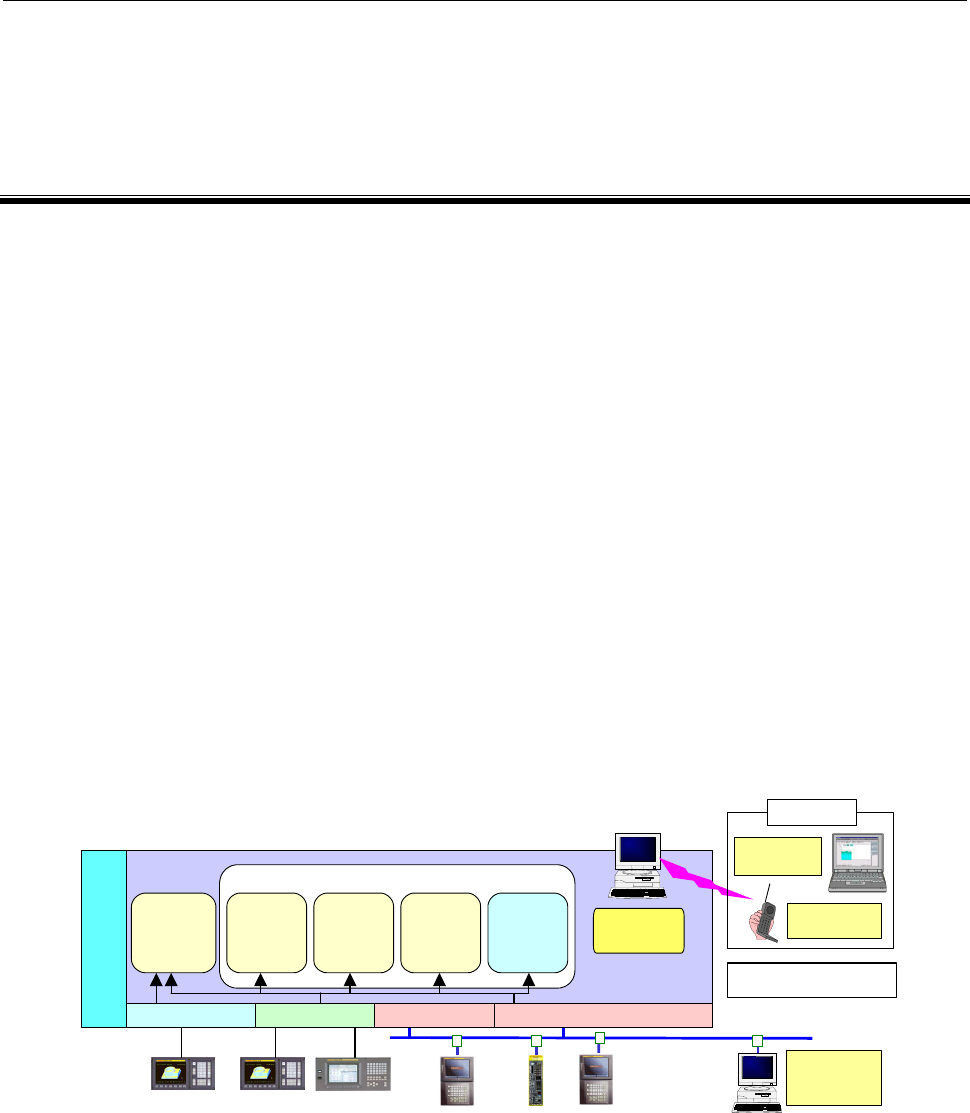

DATA SERVER

FOCAS2 / Ethernet

DNC2

Reader/Puncher

CIMPLICITY HMI

NC Program

Management

CNC Display

& Operation

Software

Prepared

By User

Maintenace

function

Operation

Monitoring

Remote

Monitoring

by Web View

Remote Site

Monitoring by

CIMPLICITY

iewer

Windows XP/2000

Windows NT 4.0

Ethernet

RS-232-C

CNC machine tool

FANUC CIMPLICITY

CELL

RS-232-C

*1 i-mode provides service

Monitoring

by i mode *

１

The i CELL is developed using CIMPLICITY



HMI, which has found

applications in SCADA (monitoring control and data collection)

software. The user can utilize a wide variety of functions available with

this tool. Moreover, the tool can be modified to meet the operation of

the user, and user-specific screens and functions can be added.

In addition, by using the enhanced network function of CIMPLICITY

HMI, a distributed system where multiple personal computers are

installed at necessary locations can be built easily. Multiple

CIMPLICITY viewer personal computers can reference a personal
