B-75074EN/04 GENERAL 4.NC PROGRAM MANAGEMENT

- 33 -

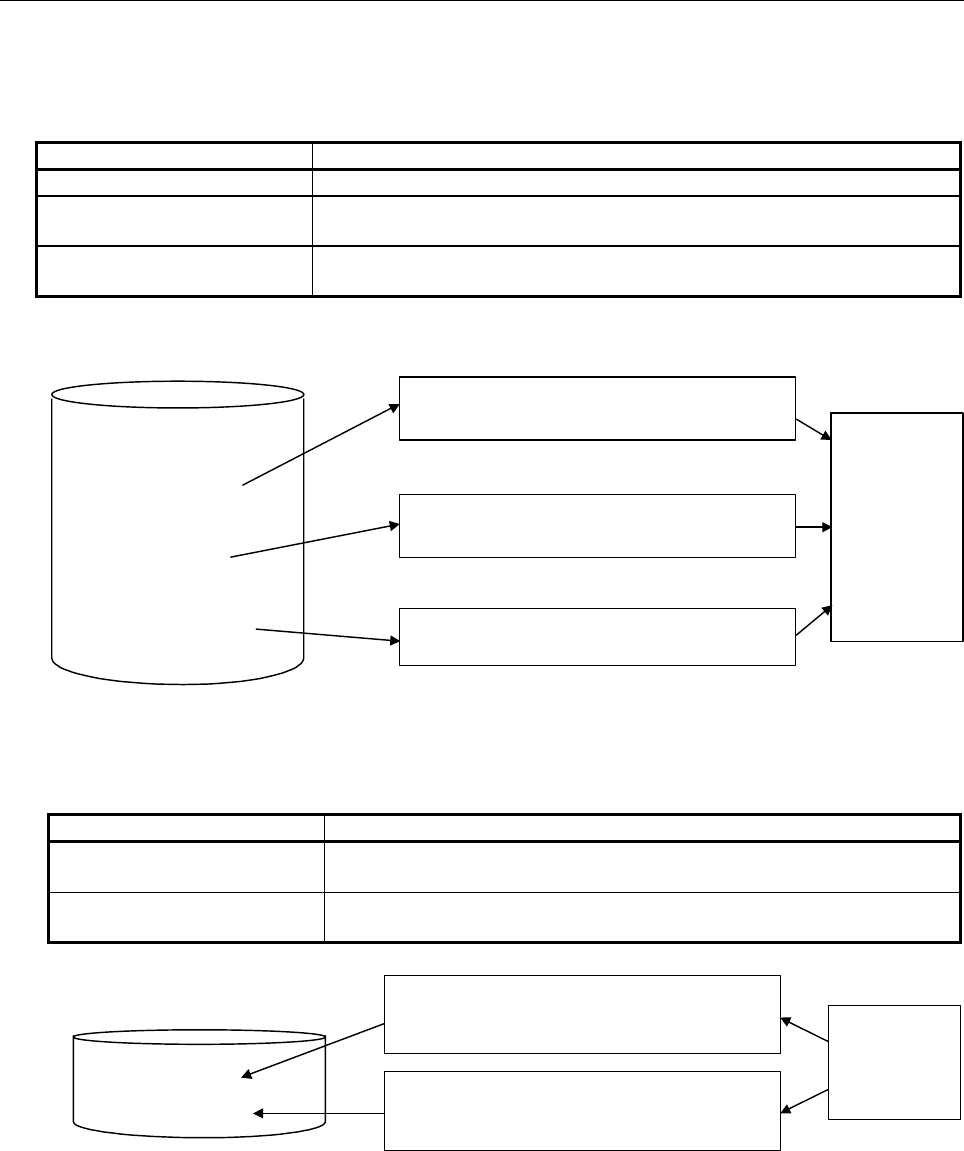

The following table lists the methods for determining an NC program to

be downloaded by operating.

Methods for determining an NC program to be downloaded by operating the NC

Used key Method for determining an NC program to be transferred

File name Searches the default directory for a file with the specified name.

NC program number

Searches the default directory for file Oxxxx.DAT (xxxx: NC program number,

DAT: Default extension). The default extension can be changed.

File number

Sorts the files in the default directory in ASCII order and finds a file whose ordinal

position number is the same as the file number.

1 FILE_A.TXT

2 FILE_B.TXT

3 O0001.DAT

4 O0003.DAT

5WORK1.DOC

6WORK2.DOC

Default directory for machine 1

on the personal computer

When file name "FILE_B.TXT" is used as the key,

this file is downloaded.

When NC program number "3" is used as the

key, this file is downloaded.

When NC program number "6" is used as the

key, this file is downloaded.

Machine 1

The following table lists the methods for storing a file uploaded by

operating the NC.

Methods for storing an NC program uploaded by operating the NC

Used key Method for storing an NC program

File name Uses the key as the file name without modification and stores the file in the

default directory.

NC program number Stores the file in the default directory with file name Oxxxx.DAT (xxxx: NC

program number as the key, DAT: Default extension).

O0001

O0001.DAT

When "O0001" in the NC is uploaded and stored

on the personal computer with NC program

number "1" used as the key

Machine 1

When "O0001" in the NC is uploaded and stored

on the personal computer with file name "O0001"

used as the key

Default directory for machine

1 on the personal computer

See Appendix C, "NC OPERATION EXAMPLES" for how an NC

operation is associated with a key used on the personal computer FA.
