B-75074EN/04 USER CUSTOMIZE 2.ADDING SCREENS

- 397 -

Operation

When you double-click a tab, the screen display switches to the

corresponding function screen.

2.3.2 Back Button

When you click the Back button, the screen currently open is closed and

the screen that was previously open is opened.

Setting

The screen variables below need to be set.

FNC_ErrFlag

Whether an error has occurred is indicated.

(*1)

0 (initial value): Normal, Other than 0: Error

FNC_DspFlag

Whether screen display is being processed is indicated.

(*1)

0 (initial value): Not being processed, 1: Being processed

(*1) With the general-purpose tab control, the variables are used as an

operation execution condition.

Execution condition: FNC_ErrFlag=0 and FNC_DspFlag≠1

Operation

When you click the Back button, a procedure is executed to close the

screen currently open and open the screen that was previously open.

2.3.3 Title Bar

The title bar displays a package name ("Integrated Package" by default),

menu (function) name, screen name, and date and time (CIMPLICITY

system point value).

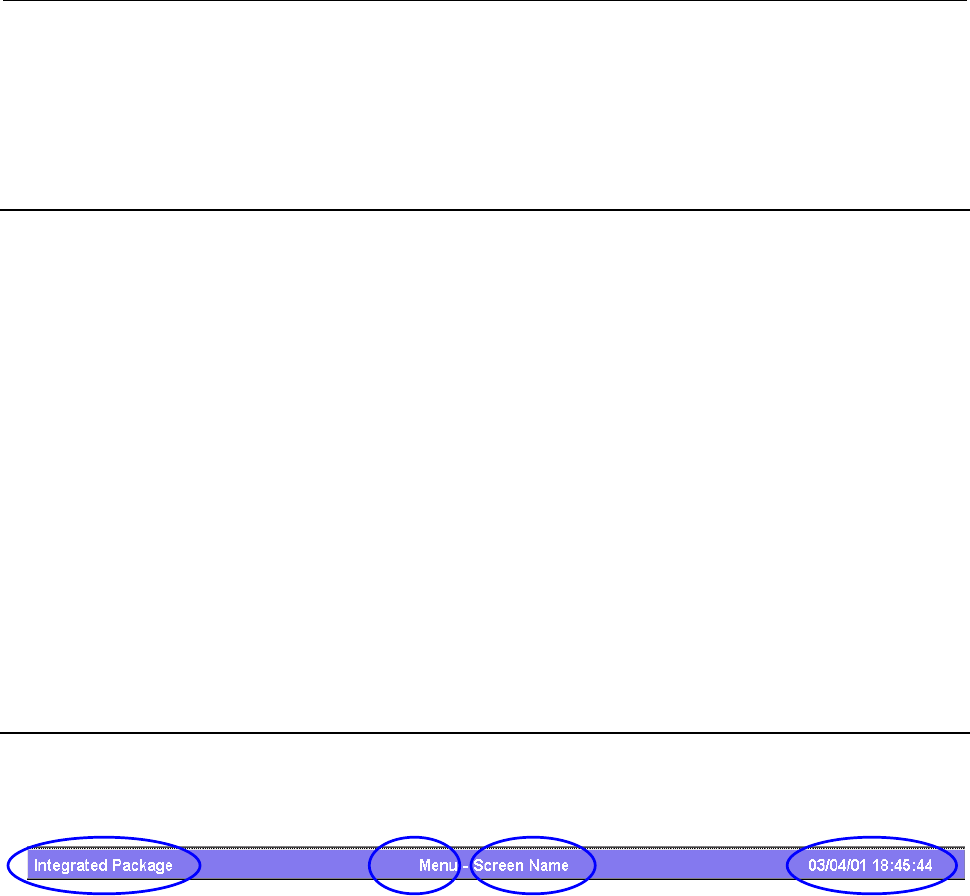

Package name Menu (function) name Screen name Date and time

Setting

The screen variables below need to be set.

FNC_TBar_Menu

Text character string for representing a menu

(function) name

FNC_TBar_ScrName

Text character string for representing a screen name

Operation

When a screen is opened, the menu (function) name, screen name, and

date and time information are acquired and displayed.
