2.9.2 Automatic Data Backup

With

i CELL, various types of NC data can be automatically backed up

at regular intervals.

Check the NC Disp, Ope and Mainte check box of the function tab on

the

i CELL machine setting screen. The Backup Data button is enabled.

Check

Enabled

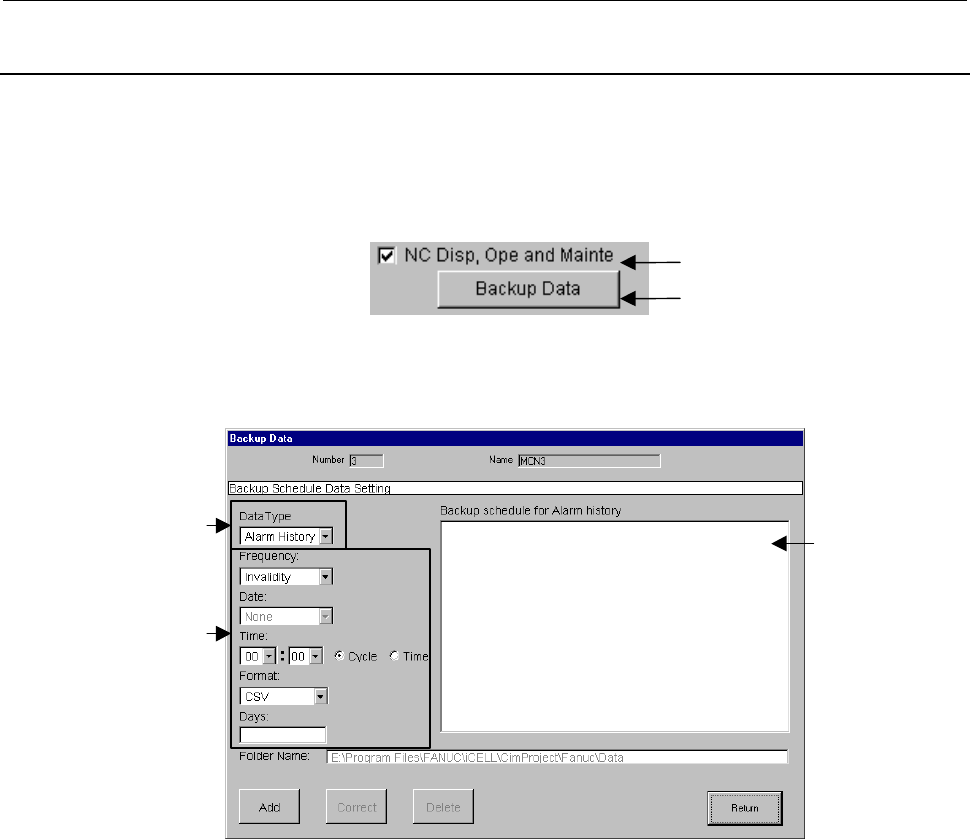

Press the Backup Data button to display the backup data screen shown

below.

(1) Select a

data type.

(2) The settings

registered for a

selected data

type are

displayed.

(3) Backup

condition

The operation procedure is described below.

(1) Select a type of data to be backed up.

(2) The settings registered for a selected data type are displayed as a

list on the right side of the screen.

(3) To add a setting, specify a backup condition and press the Add

button. To edit a setting already registered, select the setting from

the list. Then, the registered backup condition is displayed. Edit

the condition and press the Correct button.

To delete a setting already registered, select the setting from the

list, then press the Delete button.
