B-75074EN/04 OPERATION 8.NC DISPLAY AND OPERATION

- 335 -

<2> NC display and operation switching

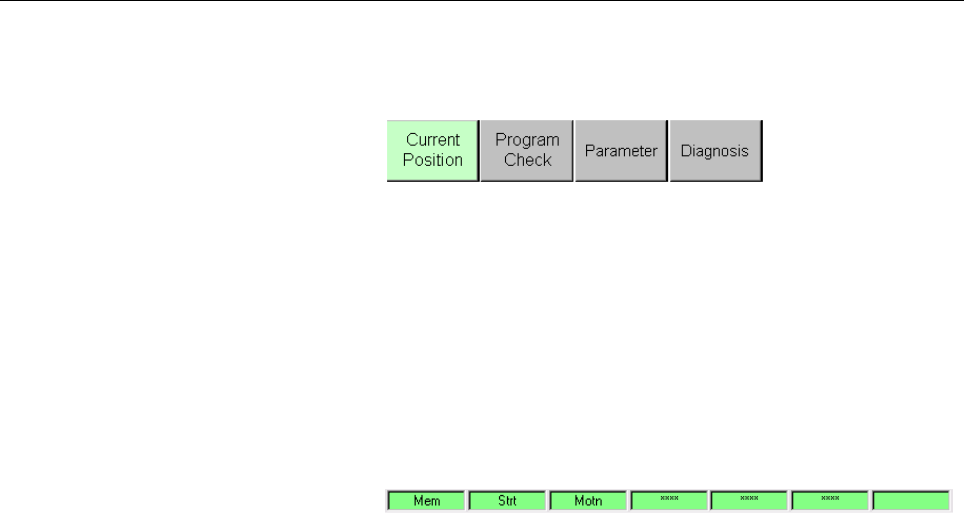

Switch the screen display by clicking a desired button at the

bottom of the screen.

[Current Position] button :

Displays the current position display screen.

[Program Check] button :

Displays the program check screen.

[Parameter] button :

Displays the parameter setting screen.

[Diagnosis] button :

Displays the diagnosis screen.

<3> NC status information

NC status information is displayed.

(1) (2) (3) (4) (5) (6) (7)

In (1) through (7), status information is displayed as indicated

below.

Status display in (1)

*** : Non-selection

MDI : MDI mode

Mem : MEMORY mode

Edit : EDIT mode

Hndl : HANDLE mode

Jog : JOG mode

Tjog : TEACH in JOG mode

THnd : TEACH in HANDLE mode

Inc : INCREMENTAL mode

Ref : REFERENCE mode

Rmot : SCHEDULE mode

Test : TEST run mode

Status display in (2)

**** : Reset

Stop : Operation stopped

Hold : Operation temporarily stopped

Strt : Being started

MStr : During tool wait and return operation, repositioning,

and motion based on a manual numeric command

Status display in (3)

*** : Others

Motn : During axis movement

Dwel : During dwell operation

Status display in (4)

*** : Non-selection

FIN : Waiting for processing

Emg : Emergency stop state

Reset : Reset state

Status display in (5)

*** : No alarm issued

Alarm : Alarm issued
