B-75074EN/04 APPENDIX B.NC SETTING

- 489 -

B.2.2 Setting the FOCAS2/Ethernet Functions

This subsection describes the setting for using the FOCAS2/Ethernet

function.

B.2.2.1 FOCAS2/Ethernet parameter screen

The Ethernet Parameter screen is used to set parameters that are needed

to run the FOCAS2/Ethernet functions.

Display

Procedure

1 Place the CNC in MDI mode.

2 Press function key

SYSTEM

3 Press the Continuation menu key at the bottom right of the soft key

menu.

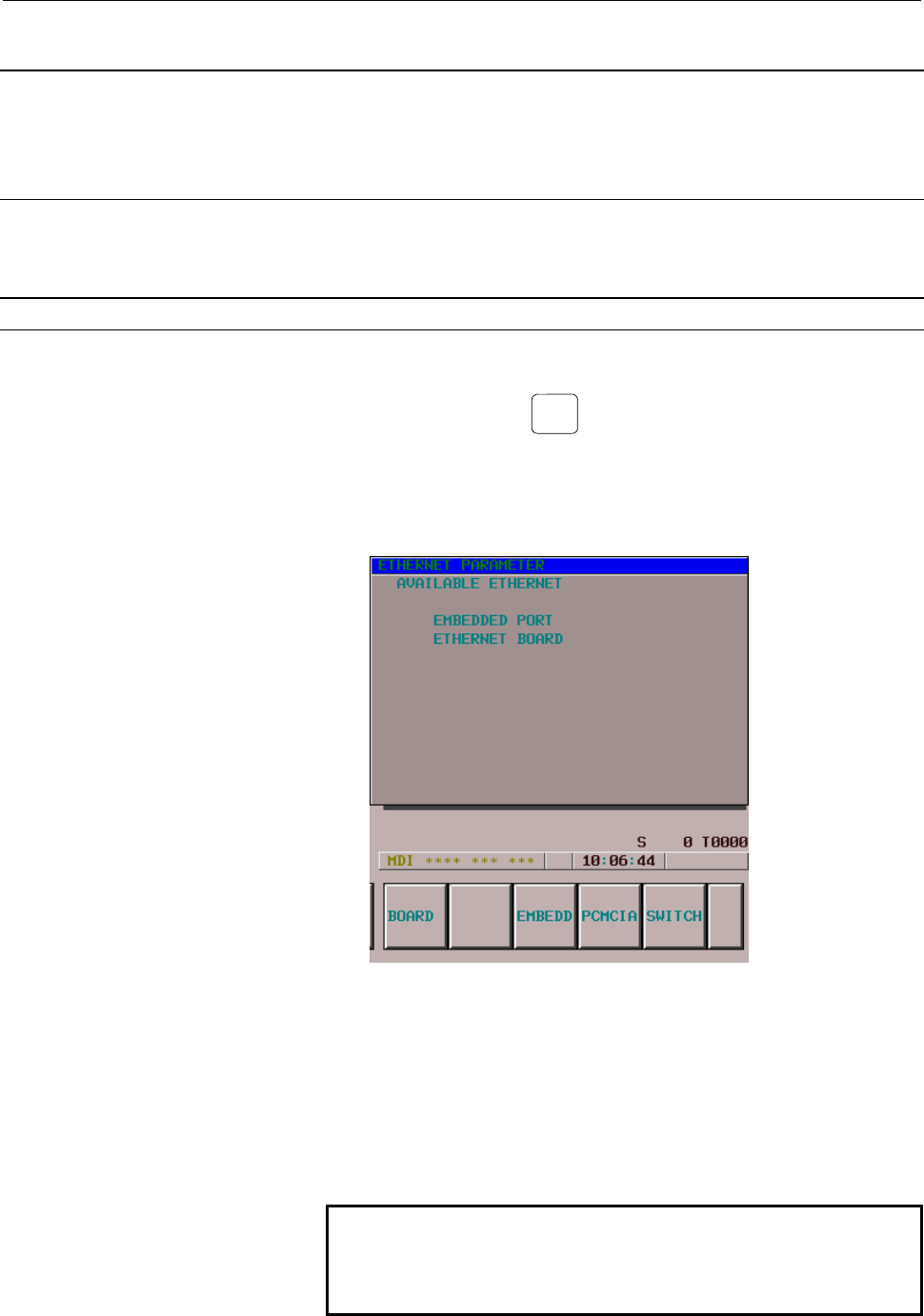

4 When you press soft key [ETHPRM], the "Ethernet Parameter"

screen appears.

The Ethernet functions currently available are displayed.

The upper row displays the usable embedded Ethernet function

device. The embedded port or PCMCIA card is displayed.

The lower row displays the usable Ethernet option boards. When

no option board is installed, no information is displayed.

5 By pressing the [EMBEDD] soft key, the parameters for the

embedded Ethernet port can be set.

By pressing the [PCMCIA] soft key, the parameters for the

PCMCIA Ethernet card can be set.

NOTE

The parameters for the embedded Ethernet port and

the parameters for the PCMCIA Ethernet card are

independent of each other.
