B-75074EN/04 APPENDIX B.NC SETTING

- 511 -

B.4.3 Configuring a Small-scale Network

The following shows an example of the minimum settings needed to run

the FOCAS2/Ethernet functions on a small-scale network.

These settings allow a personal computer to be connected to two CNCs

by the FOCAS2/Ethernet functions.

• The FOCAS2/Ethernet function client runs on personal computer

No.1.

• The FOCAS2/Ethernet function server runs on CNCs No.1 and

No.2.

CNC No.1 CNC No.2

IP address 192.168.0.1 192.168.0.2

Subnet mask 255.255.255.0 255.255.255.0

Router IP address None None

TCP port No. 8193 8193

UDP port No. 8192 8192

Time interval 50 50

Personal computer No.1

IP address 192.168.0.101

Subnet mask 255.255.255.0

Default gateway None

IP address 192.168.0.1 CNC No.1

Port number 8193

IP address 192.168.0.2 CNC No.2

Port number 8193

B.4.4 Configuring a Large-scale Network

Before you configure a large-scale network or add such a network to an

existing network, consult your company's network administrator to

determine IP addresses, subnet masks, and router IP addresses.

The FOCAS2 setting screen is used for

settin

Set these items in "Microsoft TCP/IP Property" on

the personal computer (Windows OS).

Specify on the setting screen of i CELL. Refer to

Subsection 2.6.1, "Setting up Communication," in

Part III for details.

The common setting screen is used for

setting.

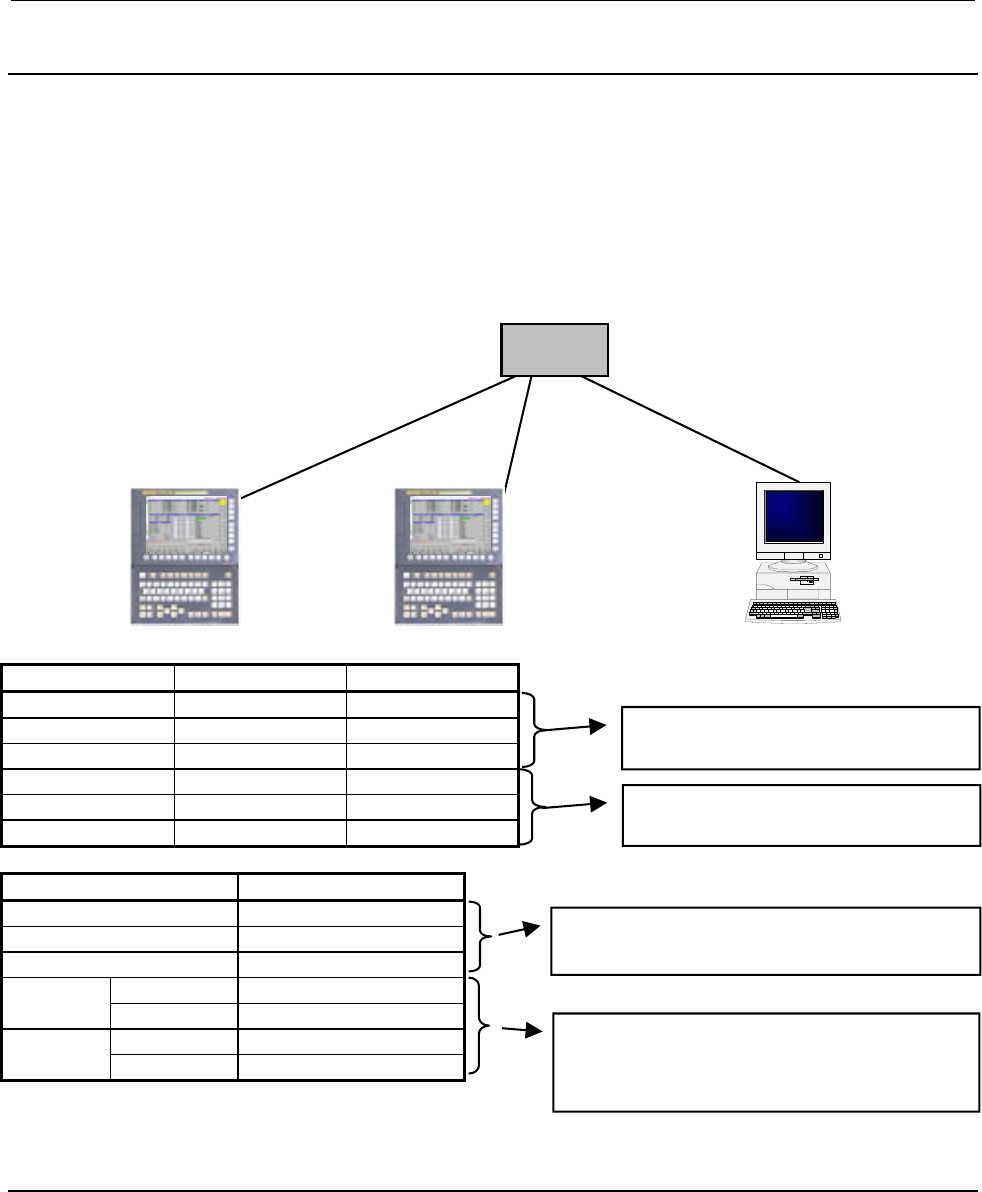

Personal

computer No.1

CNC No.2

CNC No.1

100BASE-TX or 10BASE-T

HUB
