B-75074EN/04 SETTING 5.CIMPLICITY VIEWER

- 227 -

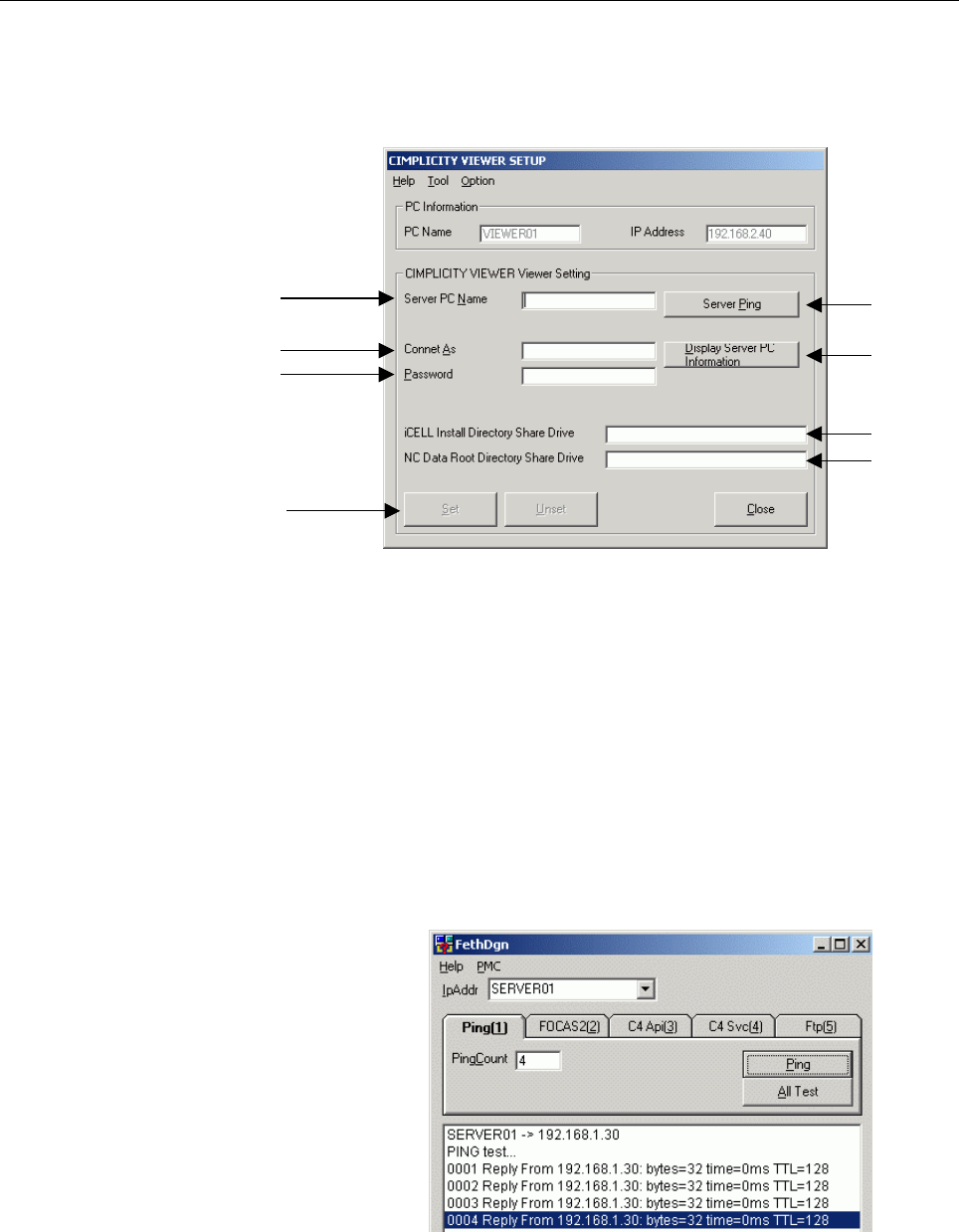

Operation on the i CELL CIMPLICITY VIEWER Setting Screen on the viewer PC

(1) Open the CIMPLICITY VIEWER Setting Screen.

Execute “CIMPLICITY VIEWER SETUP” in program group

“CIMPLICITY i CELL.”

(2) Enter the i CELL server PC name.

Enter the name (not the IP address) of the i CELL server PC in the

[Server PC Name] text box (<1>).

(3) When there is a router between the server and viewer PCs, check

[Connect to Server PC's C4 Service] in the [Option] menu.

(4) Check the TCP/IP setting using the ping command.

Check that the viewer PC can communicate with the server PC

using the TCP/IP.

A. Click the [Server Ping] button (<2>).

B. When the viewer PC can communicate with the server PC,

the IP address of the server PC is displayed for "Reply" as

shown below:

If "Reply" is not displayed, check the setting so that "Reply"

is displayed, referencing Subsection 5.2.1, "Checking the

Conditions for CIMPLICITY Viewer Operation and

Communication."

<2>

<8>

<6>

<7>

<5>

<1>

<3>

<4>
