2.ADDING SCREENS USER CUSTOMIZE B-75074EN/04

- 398 -

2.3.4 Message Line

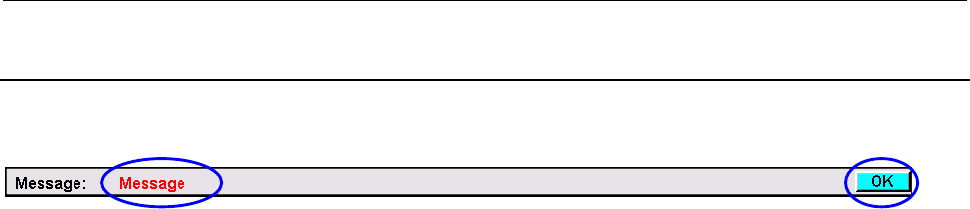

The message line displays a message.

Message <OK> button

Setting

The screen variables and procedure below need to be set.

Screen variables

FNC_MLine_DspMsg

Text character string to be displayed. This

character string needs to be enclosed in double

quotation marks (").

Example: "Error occurred."

FNC_ErrFlag

Whether an error has occurred is indicated.

(*1)

0 (initial value): Normal, Other than 0: Error

FNC_MsgFlag

Whether a character string is to be displayed is

indicated.

(*1)

0 (initial value): Not displayed, Other than 0:

Displayed

(*1) With the message line, the variables are used as an operation

execution condition.

Execution condition: FNC_ErrFlag ≠ 0 or FNC_MsgFlag≠0

Procedure

ErrorFlagLow

Procedure executed to set FNC_ErrFlag=0.

Ensure that the action FNC_ErrFlag=0 is included.

Operation

A message is displayed. When an error occurs, a message is displayed

with FNC_ErrFlag≠0 (red characters). In other cases, a message is

displayed with FNC_MsgFlag≠0 (blue characters).

When FNC_ErrFlag≠0, the <OK> button is displayed. When you click

this button, an event for calling the procedure ErrorFlagLow (setting

FNC_ErrFlag=0 by action) occurs, and the message and button are

hidden.
