B-75074EN/04 APPENDIX B.NC SETTING

- 519 -

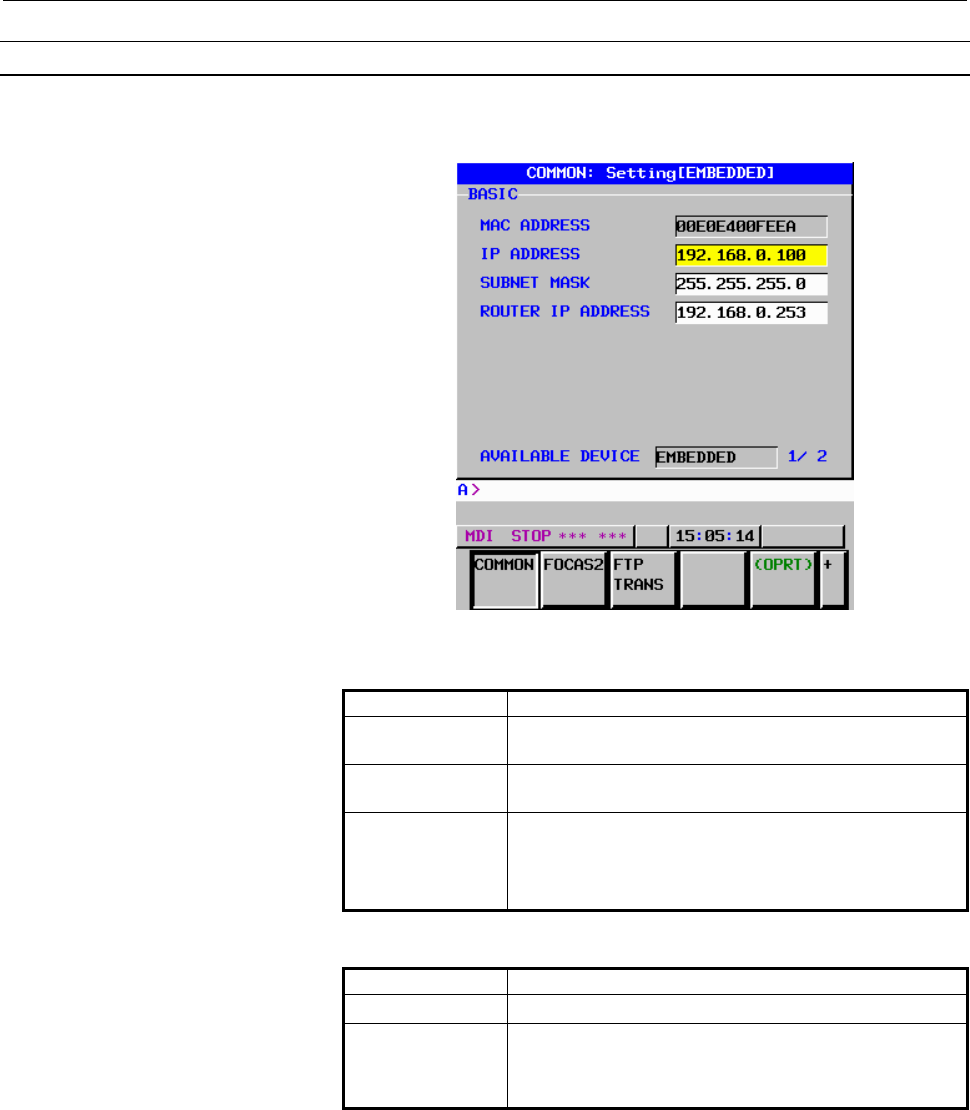

COMMON screen

Press soft key [COMMON] to display the COMMON screen.

COMMON screen

Setting item

Item Description

IP ADDRESS Specifies the IP address of the embedded Ethernet.

(Example of specification format: "192.168.0.100")

SUBNET MASK Specifies the mask address of the network IP address.

(Example of specification format: "255.255.255.0")

ROUTER IP

ADDRESS

Specifies the router IP address.

Specify this address when the network incorporates a

router.

(Example of specification format: "192.168.0.253")

Display item

Item Description

MAC ADDRESS Embedded Ethernet MAC address

AVAILABLE

DEVICE

Enabled device of the embedded Ethernet.

Either the embedded Ethernet port or the PCMCIA

Ethernet card is displayed.
