B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 283 -

NOTE

When folder uploading is performed, the result of

the uploading operation is written in the result file.

The contents of the result file are displayed in the

Result uploaded folders dialog box described later,

so you need not open this file to check the results.

The result file is created

in %iCELL%\CimProject\Fanuc\Data\. The file

name is XXX_FolderUploadResult.ini, where XXX

denotes the machine number. The file is overwritten

each time a selected folder is uploaded.

4 Click the <Upload> button.

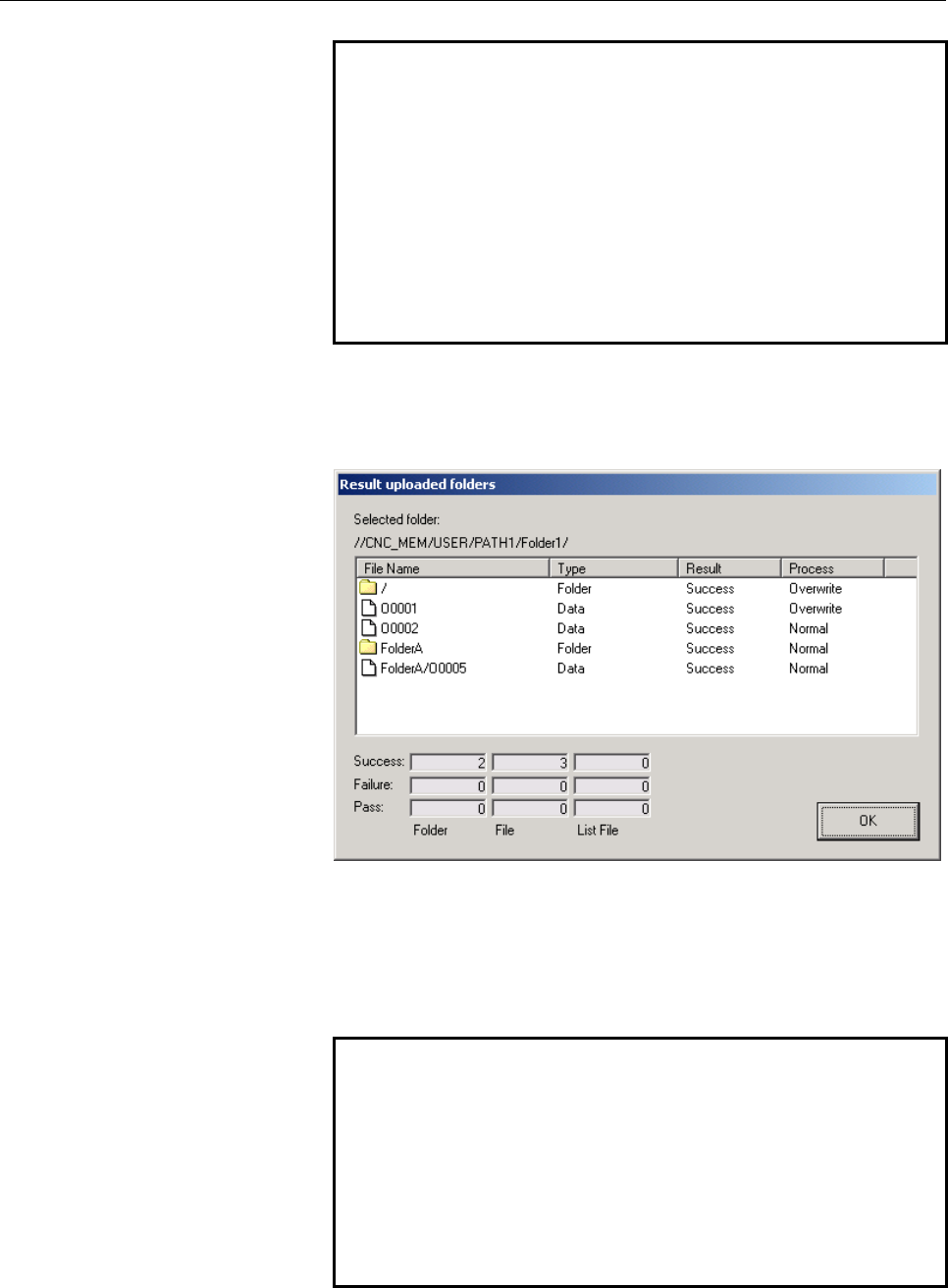

When folders are included, the result dialog box as shown below is

displayed each time a selected folder is uploaded. If uploading

fails, an error code is indicated in the Result column.

• Selected folder: Indicates the path of the folder to be

uploaded. In File Name on the screen, "/" is displayed.

5 The selected files are uploaded to the personal computer, and the

PC side File List is updated to display the latest information.

NOTE

A CNC that supports file name management like

Series 30i/31i/32i provides case sensitivity.

However, Windows OS does not support case

sensitivity. So, a file named AAA and a file named

aaa can be created with the CNC. However, if files

AAA and aaa are uploaded to the personal

computer in this order, file AAA is replaced with file

aaa uploaded later.
