B.NC SETTING APPENDIX B-75074EN/04

- 502 -

B.3.2.2 Configuring a small-scale network

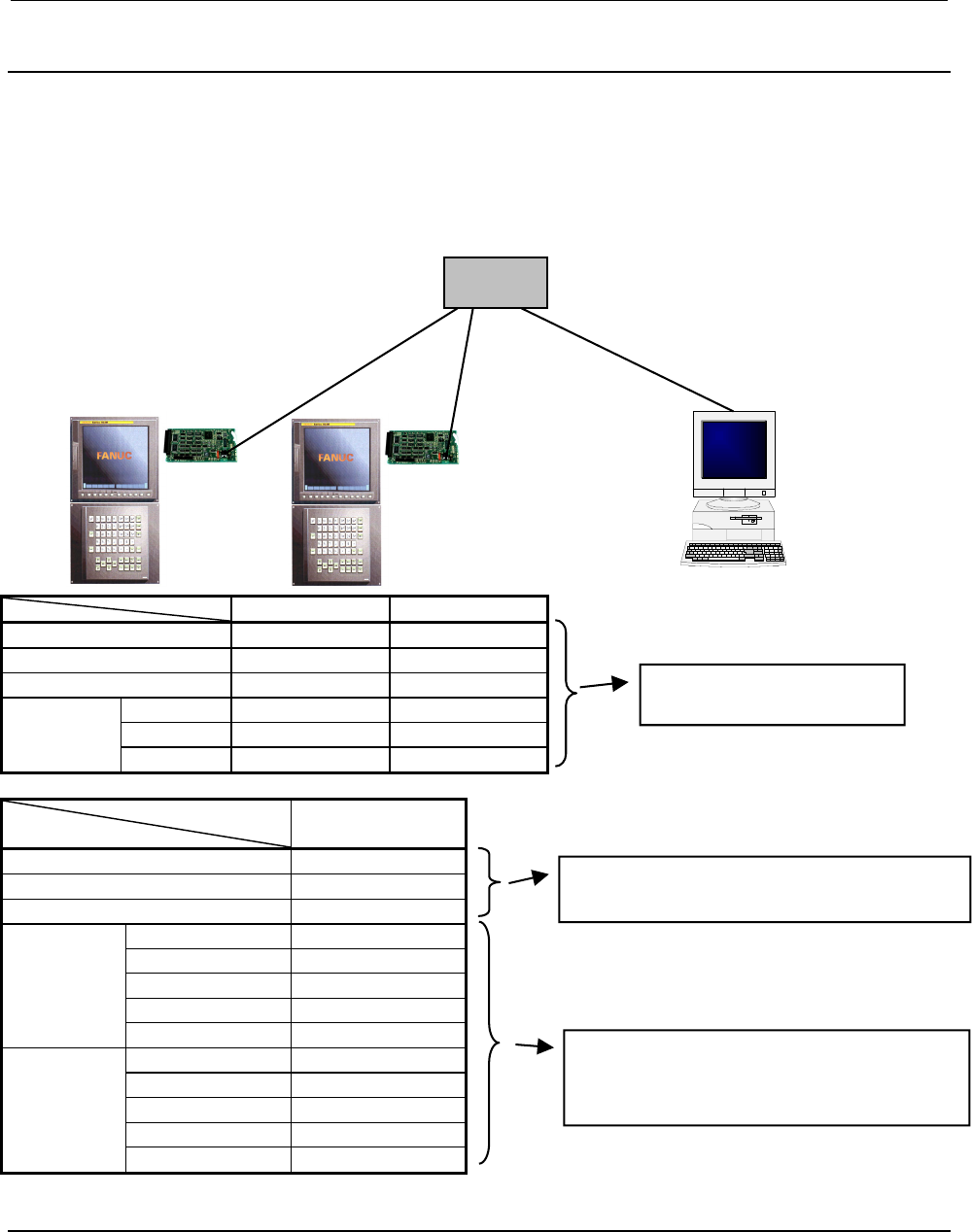

The following shows an example of the minimum settings needed to run

the Data Server functions on a small-scale network.

These settings allow a personal computer to be connected to two CNCs

by the Data Server.

• The FTP client runs on personal computer No.1.

• The FTP server runs on CNCs No.1 and No.2.

CNC No.1 CNC No.2

IP address 192.168.0.1 192.168.0.2

Subnet mask 255.255.255.0 255.255.255.0

Router IP address None None

User name dtsvr dtsvr

Password dtsvr dtsvr

FTP server

Personal

computer No.1

IP address 192.168.0.101

Subnet mask 255.255.255.0

Default gateway None

NC IP address 192.168.0.1

NC port number 21

NC user name dtsvr

NC password dtsvr

CNC No.1

NC Login DIR None

NC IP address 192.168.0.2

NC port number 21

NC user name dtsvr

NC password dtsvr

CNC No.2

NC Login DIR None

B.3.2.3 Configuring a large-scale network

Before you configure a large-scale network or add such a network to an

existing network, consult your company's network administrator to

determine IP addresses, subnet masks, and router IP addresses.

Personal computer No.1

CNC No.2

CNC No.1

10BASE-T or 100BASE-TX

HUB

Set these items on the "Ethernet

Parameter" screen.

Set these items in "Microsoft TCP/IP Property" on

the personal computer (Windows OS).

Specify on the setting screen of i CELL. Refer to

Subsection 2.6.1, "Setting up Communication," in

Part III for details.
