B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 281 -

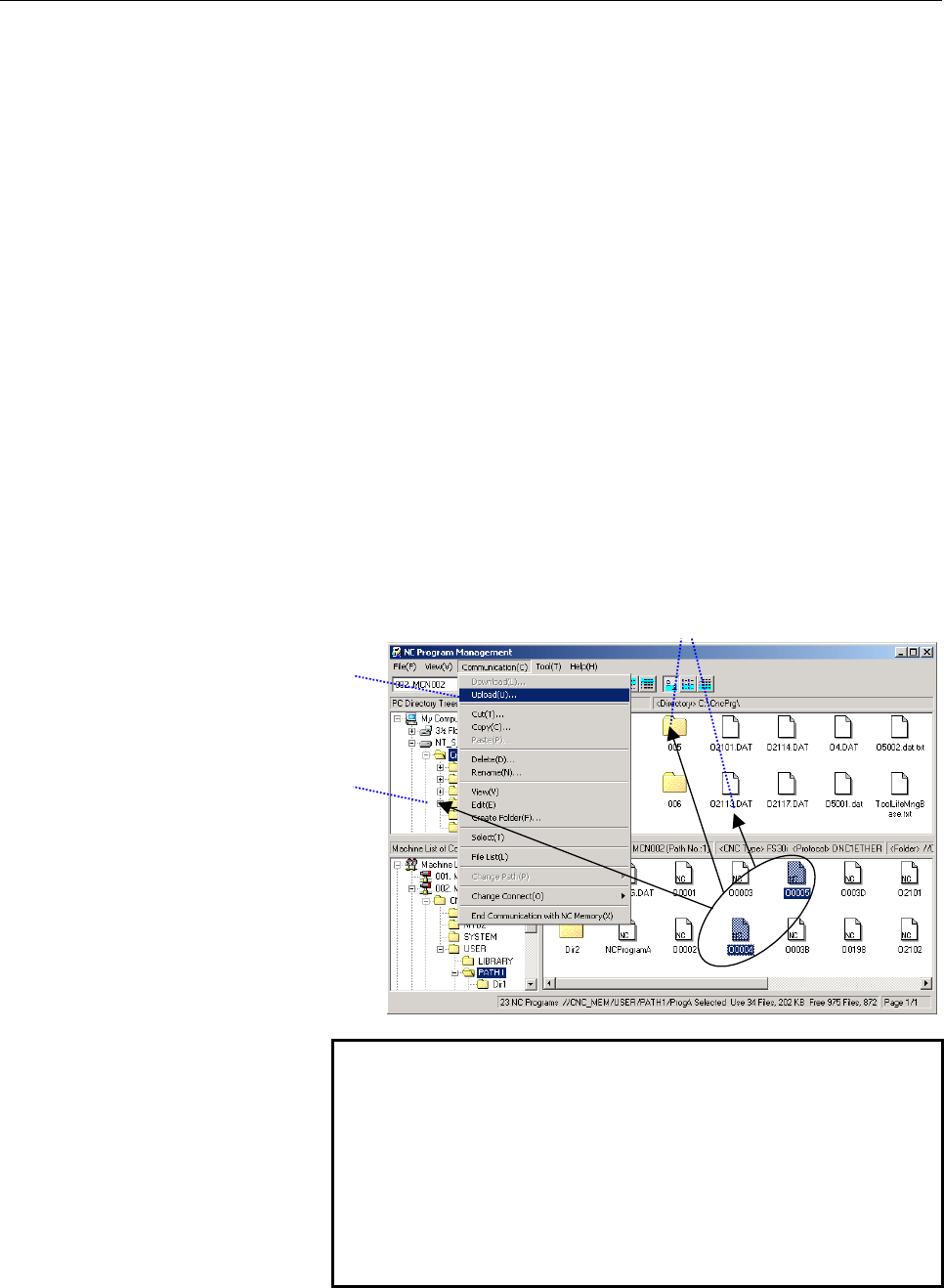

Uploading a NC Program

1 In the File List of the connection destination, click the file you

want to upload. You can select more than one file by clicking files

while pushing the [Ctrl] key. When the Series 30i/31i/32i is

connected , you can also select folders.

2 Perform one of the following operations:

A) Drag and drop the file selected in the File List of the

connection destination to the PC side File List. When the file

is dropped to a blank space or a file in the PC side File List,

the file is uploaded to the folder for which the PC side File

List is displayed. When the file is dropped to a folder in the

PC side File List, the file is uploaded to the folder.

B) Drag and drop the file selected in the File List of the

connection destination to the PC Directory Trees.

C) In the [Communication] menu or the menu displayed by

right-clicking on the selected file, click the [Upload]

command.

When a file is selected in the PC side File List, the file is

uploaded to the folder for which the PC side File List is

displayed.

When a folder is selected in the PC side File List, the file is

uploaded to the folder.

NOTE

1 When uploading is specified by selecting the

[Upload] menu item, the file is uploaded to a

directory if the directory is selected in the PC side

File List. Before the menu operation, check the file

or directory selected in the PC side File List.

2 Uploading to the root directory of My Computer or to

the directory of the network drive cannot be

performed.
