B-75074EN/04 OPERATION 6.MACHINING RESULTS

- 319 -

<3> Table format display button

This button displays data in a table format. In this format, tun time data

and machined parts count data is indicated in a table.

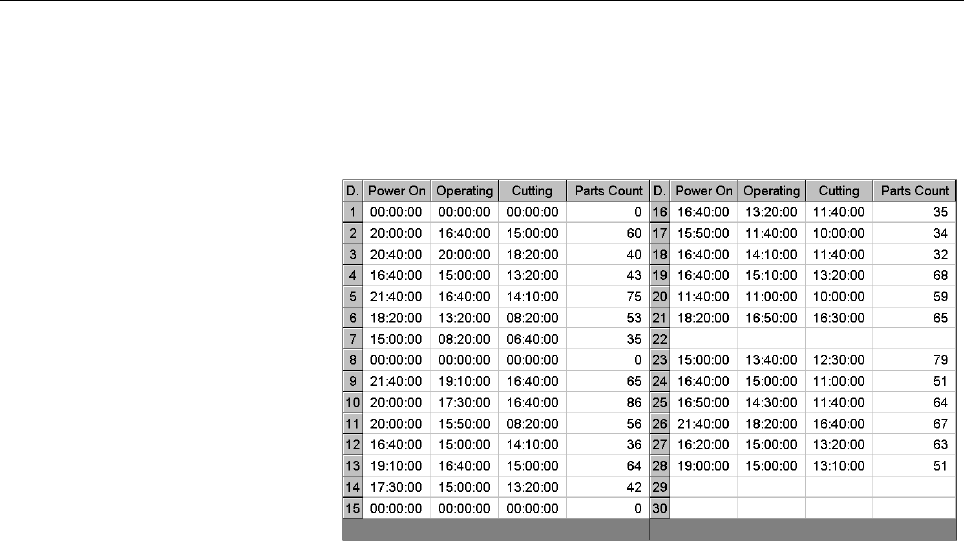

- Example of table format display

<4> Utilization display

The ratio of cutting time to power-on time is indicated by percentage.

The utilization for the indicated number of days is indicated.

<5> Display refresh button

This button updates the screen to display the latest data.

<6> Tool life management display button

This button displays the tool life management screen.

<7> Workpiece process result display button

This button displays the workpiece process result screen.
