2.BASIC FUNCTIONS SETTING B-75074EN/04

- 160 -

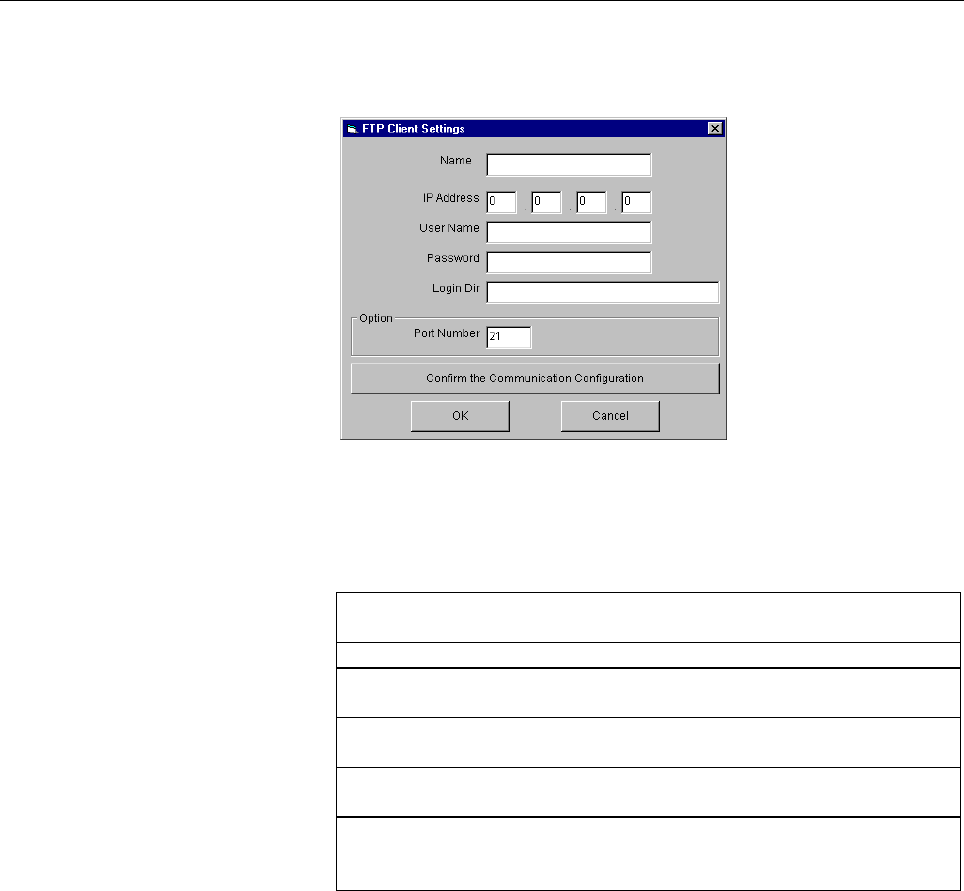

The client setting dialog box is displayed, regardless of which operation

was chosen.

The example of screen display above is used for creation. For editing, a

value is set in the item of Name, and the value of the Name item cannot

be modified.

The table below indicates the meanings of the setting items.

Name

Set a name for identification in login to the FTP

server.

IP Address

Specify the IP address of the FTP server.

User Name

Set a user name to be used for logging in to

the FTP server.

Password

Set a password to be used for logging in to the

FTP server.

Set a login directory to be used for logging in

to the FTP server.

Port Number

Set a port number to be used for connection to

the FTP server.

Usually, the default value 21 is used.

Upon completion of communication setting, click the <Confirm the

Communication Configuration> button for confirmation. For details,

see Subsection 2.6.7, "Confirming Data Server Communication

Setting".
