B-75074EN/04 APPENDIX F.SETTING UP PC

- 581 -

F.1.4 Constructing Web Sites for Windows 2000

Making the i CELL Web function operable requires constructing a Web

site on IIS.

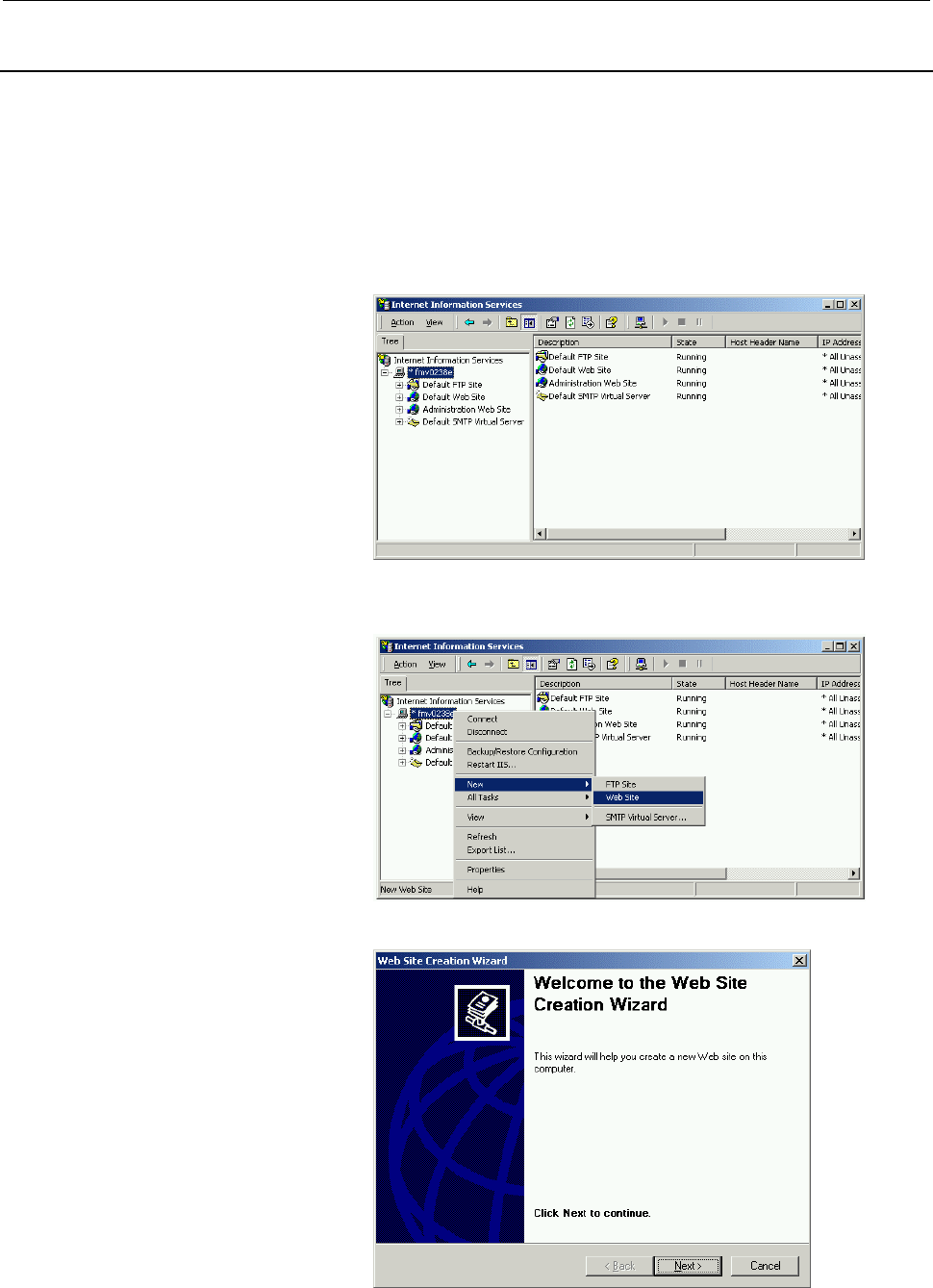

1. Select [Start] → [Program] → [Administrative Tools] → [Internet

Service Manager]. The "Internet Information Services" start.

2. Stop the [Default Web Site], which is initially set up, by selecting

it with the mouse, right-clicking, and selecting Stop.

3. Add "iCELL Web Site" by selecting the computer icon with the

mouse, right-clicking, and selecting [New] → [Web Site.]

4. The "Web Site Creation Wizard" screen appears. Click [Next].
