FANUC i-Cell Operators manual Page 656

Operators manual

Page of 739

/ 739

15/98

SHEET

DESCRIPTION

DESIGN

DATE

EDIT

FANUC LTD.

DRAW.NO.

Matsukura

Newl

istered

TITLE:

FANUC CIMPLICITY i CELL

OPERATOR’S MANUAL

05.05.19

B-75074EN/04-2

For details of each item, see Section 5.4, "POINTS FOR DATA

INPUT/OUTPUT".

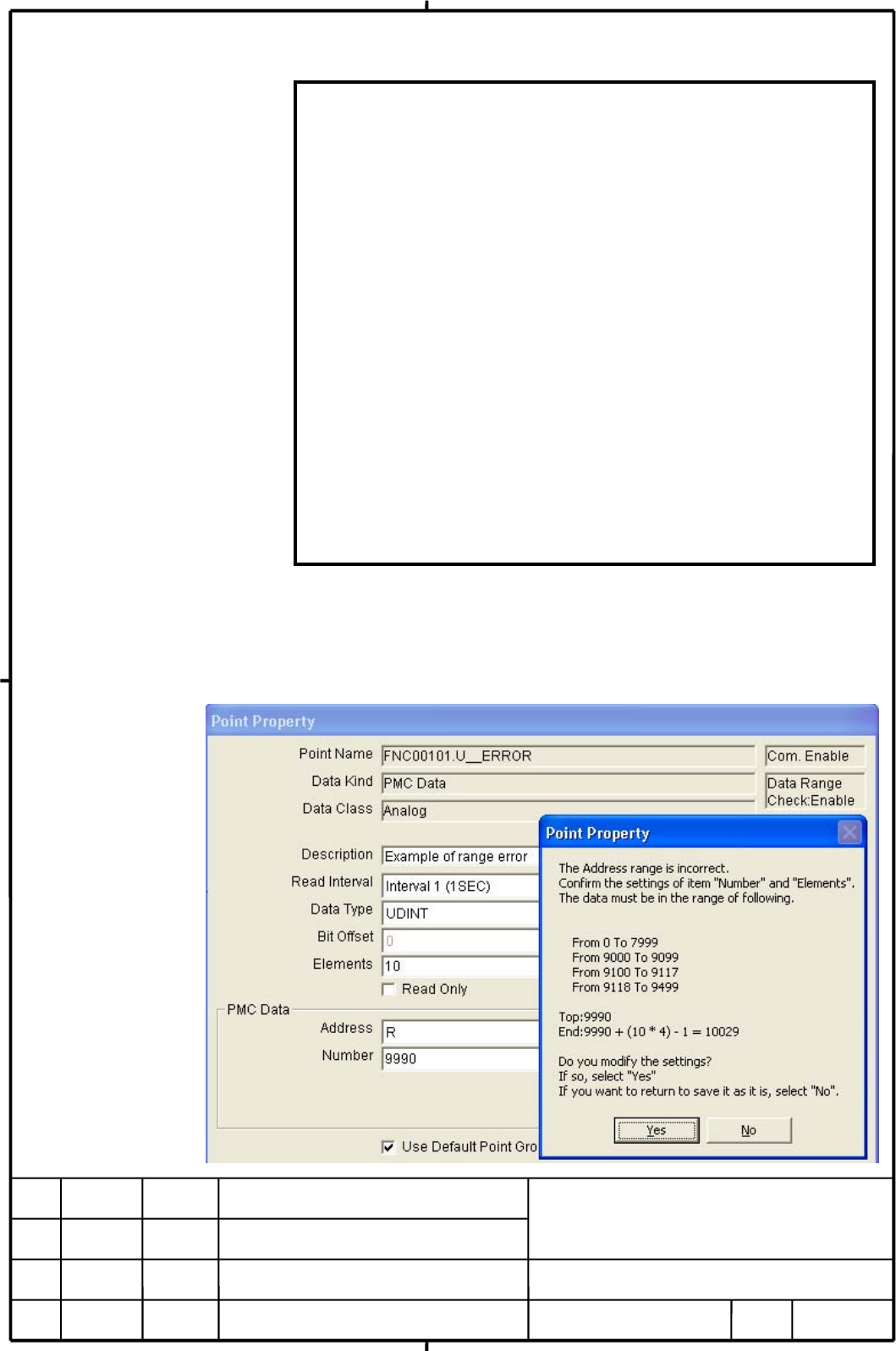

Data range check: Error example

If a data range check detects an error, an error message such as the following

is displayed. In this example, 10 data elements are set in addresses starting

with PMC R9990.

NOTE1

If a point is made read-and-write enabled and a value other than

1 is set for Elements, when the value of any element is

changed, the values of all elements are written to the CNC.

For data elements that need to be written individually, set them

at separate points and set 1 for Elements.

NOTE2

If [Com. Status] indicates Com. Disable, the data range check

is not performed, so that points may be created with invalid

CNC settings. Be sure to create points after checking that

communication is enabled.

If creating a point when communication with CNCs is not

possible, use the following procedure to perform a point data

range check again before communicating with CNCs:

(1) Select the point to check, select [Property] from the [Edit]

menu to display the Point Property dialog box.

(2) Check that [Data Range Check] indicates "Enable" before

clicking the <OK> button.
