B-75074EN/04 SETTING 2.BASIC FUNCTIONS
- 149 -
Meanings of messages displayed in FTP Connect test
The message displayed with a number depends on the specifications of
the communication destination software. The table below indicates the
meanings of numbers and examples of display on the Data Server.
Number
Meaning and example of display on Data Server
220
The communication destination is ready for accepting a new user.
Example) FANUC FTP server ready.
331
Login is started and the password is requested.
Example) User name okay, need password.
230
Login is completed.
Example) User logged in, proceed.
257
A path name (current directory in the test) was created.
Example) “/NCDATA” is current directory.
530
Login operation is not performed.
Example) Not logged in.
Method of retest on the communication setting confirmation screen
This screen is activated from the communication setting screen.
Using the procedure below, a retest for communication confirmation
can be conducted without quitting this screen and returning to the
communication setting screen.
(1) Enter the desired communication destination in [IpAddr].
(2) Enter the user name in [Usrname].
(3) Enter the password in [Password].
(4) Click the <Connect Test> button.
When a communication confirmation is made by a retest, reenter the
retest information on the communication setting screen.

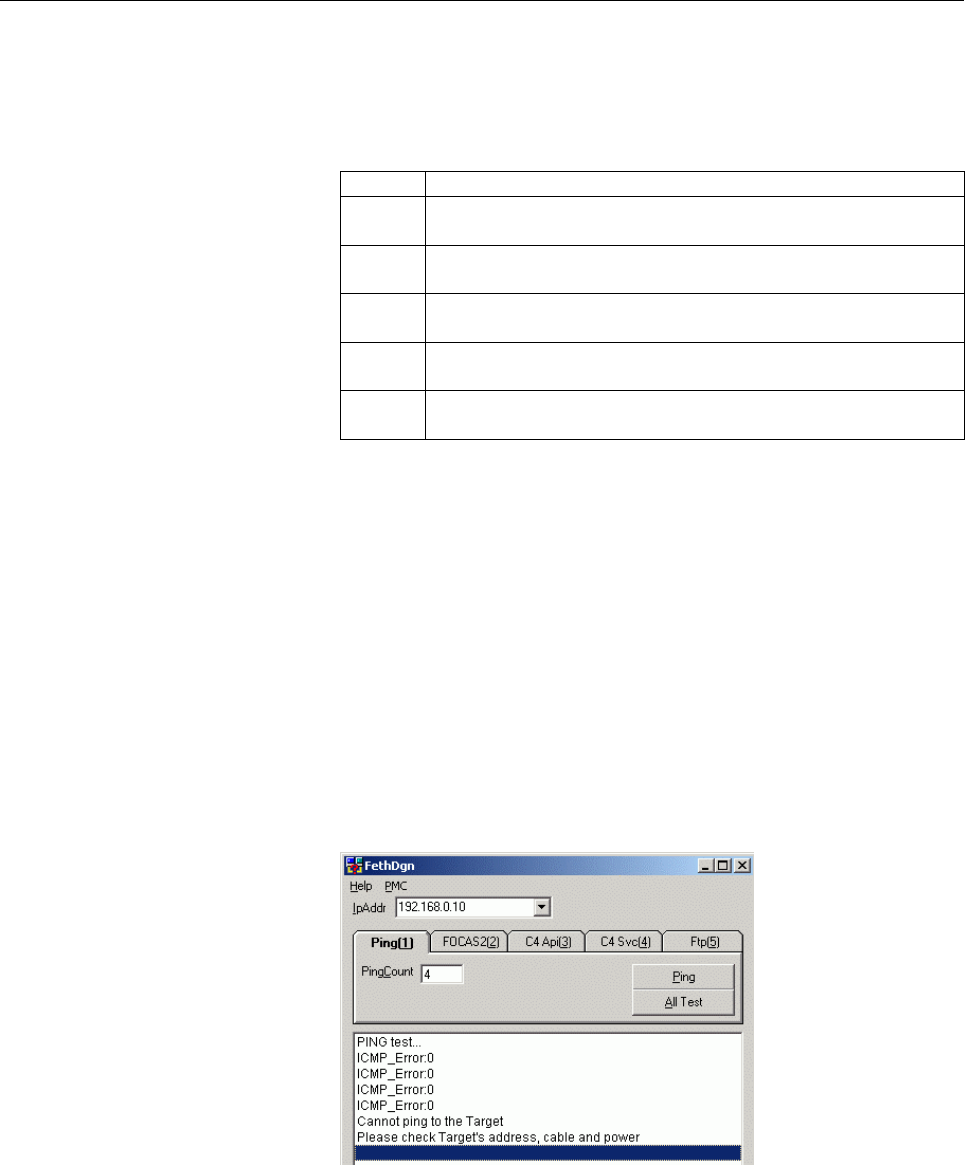

Incorrect setting (1)
If the IP address of the communication destination is not set correctly,
or the power to the communication destination is off, the following
indication may be provided in "(1) PING test".
When the "Reply From ..." line is not displayed, check the following:
(1) The power to the NC is off, or the cable is disconnected.
(2) The IP address of the NC does not match the setting on the setting
screen.
(3) The settings of the NC network address and host address are
incorrect.
