FANUC CIMPLICITY i CELL

OPERATOR’S MANUAL

05.05.19

B-75074EN/04-2

5.2.2 Point List

Point List is used to create CIMPLICITY points for data input/output and to

make various settings.

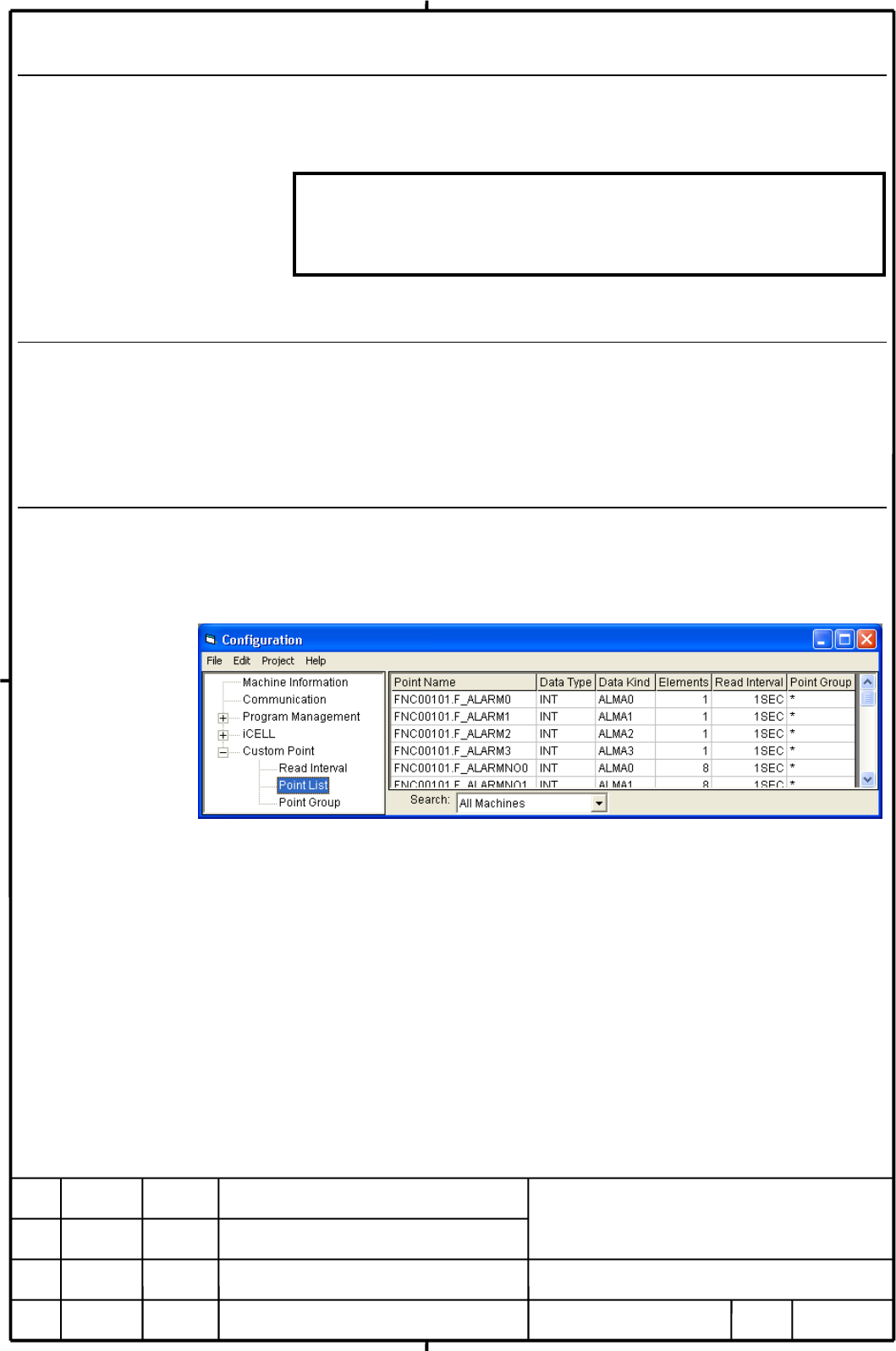

5.2.2.1 Display

From the tree on the left-hand side of the i CELL Configuration dialog box,

select [Custom Point]>[Point List], and the Point List window will appear.

Various operations can be started by displaying this window first.

5.2.2.2 Creating new points

This subsection describes how to create new points for data input/output.

The procedure can be started by first displaying the Point List window,

described in Subsection 5.2.2.1, "Display".

<1> Use one of the following methods to display the Create Point dialog

box:

• From the [Edit] menu, select [New].

• Select the last record (blank record), and select [Property] from

[Edit].

• Double-click the last record (blank record).

<2> Make the setting for each item (referring to [Create Point]), and click

the <Create> button.

<3> The Point Property dialog box appears.

<4> Make the setting for each item (referring to [Point Property]), and

click the <OK> button.

NOTE

Those points that are in use with i CELL cannot be edited,

deleted, renamed, duplicated, or duplicated to other machines.
