7.WORKPIECE PROCESS RESULTS OPERATION B-75074EN/04

- 324 -

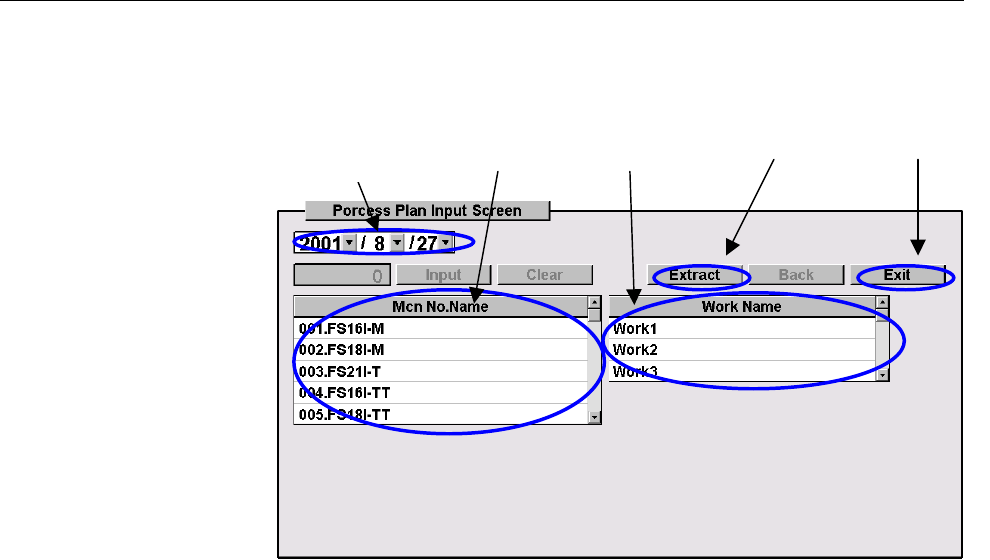

- Machine/workpiece extraction screen

Select a date, machines, and workpieces for which planned counts are to

be input.

A. Date specification list box

This button is used to select a date.

B. Machine specification list

This list is used to select a machine. Multiple machines can also be

selected. When you click the fixed cell, all machines can be

selected.

C. Workpiece specification list

This list is used to select a workpiece. Multiple workpieces can

also be selected. When you click the fixed cell, all workpieces can

be selected.

D. Extract button

This button is used to extract selected machines and workpieces

and switches the screen display to the process plan input screen.

Be sure to click this button after selecting machines and

workpieces. If no machine or no workpiece is selected, an error

message is displayed. Clear the error, then select machines and

workpieces. Until an error message is cleared, the screen does not

accept any event.

E. Exit button

This button is used to exit from the process plan input screen.

. Date specification

list box

B. Machine

specification

list

C. Workpiece

specification list

D. Extract button E. Exit button
