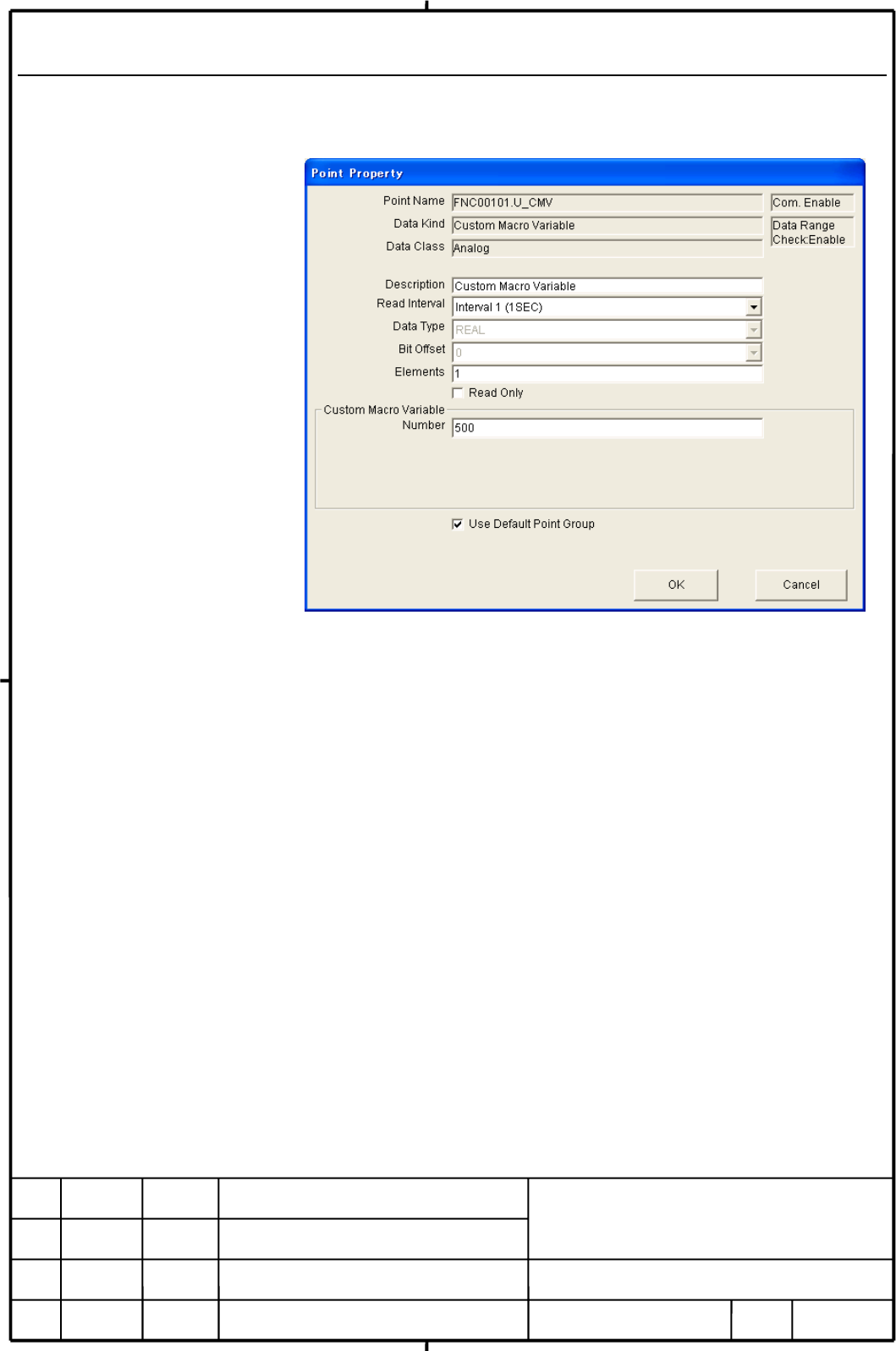

5.4.2 Custom Macro Variables

Reading and writing custom macro variables requires that a custom macro

(custom macro B) be contained in the CNC.

Items

Data Class

Analog (fixed)

Description

Allows description of the point.

Read interval

Select from among intervals 1, 2, and 3 specified

in Subsection 5.2.1, "Read intervals".

Data Type

REAL (fixed)

Bit Offset

0 (fixed)

Elements

Number of addresses to read and write NOTE 1

Read Only

Read only or read-and-write enabled NOTE2

Number

Custom macro variable number

NOTE1 If a value greater than 0 is specified for Elements (for an array),

as many elements as the value are read from and written to the

specified address.

NOTE2 Only common variables can be read-and-write enabled; local

variables can be read only.
