8.MAIL FUNCTION GENERAL B-75074EN/04

- 64 -

8.1 IMPLEMENTATION OF THE MAIL FUNCTION BY DIAL-UP

CONNECTION

The i CELL mail function uses a dial-up connection for Internet

connection. The jobs described below are required to make a dial-up

connection. The i CELL function can be used with 24-hour connection.

For the method of 24-hour connection, see Section 9.1,

"IMPLEMENTING THE MAIL FUNCTION AND WEB FUNCTION

WITH 24-HOUR CONNECTION" in this Part.

• The user needs enter into a contract with a provider for dial-up

connection. Based on information given by the provider after the

conclusion of the contract, perform settings such as DNS on the

personal computer. For a sample notification from a provider and

an example of setting on the personal computer, see Appendix G.1,

"EXAMPLE CONTRACT FOR DIAL-UP CONNECTION".

• The personal computer needs to be connected with a dial-up router.

For the method of connection, refer to the relevant manual of the

dial-up router.

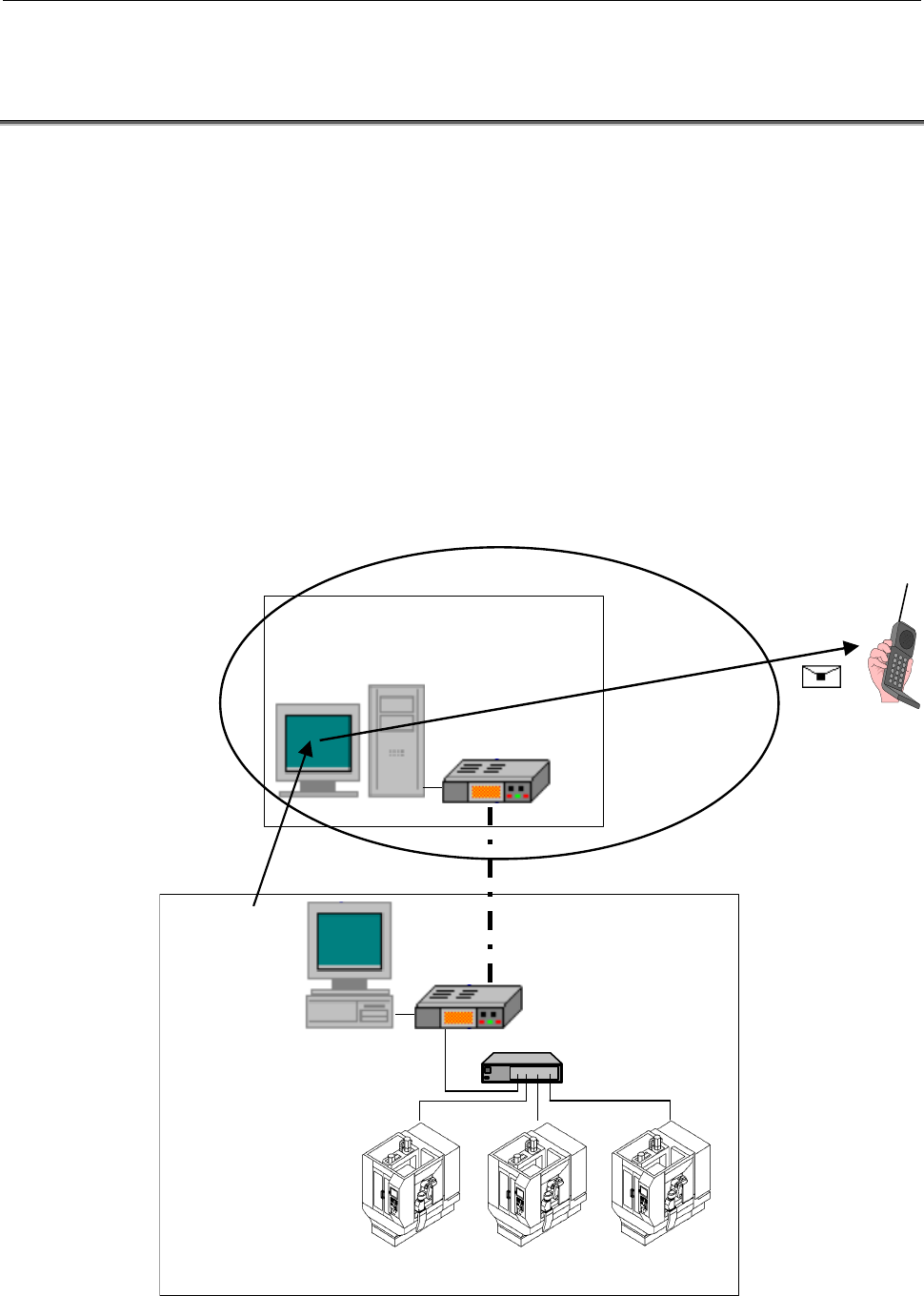

Internet service provider

Mail server

Hub

CELL

Dial-up router

Router

ISDN line

Internet

Mail function

192.168.0.101 192.168.0.102 192.168.0.103

172.16.15.2

192.168.0.100

172.16.15.1

192.168.0.1

172.16.0.10

172.16.0.1

Factory

i-mode cellular phone

or remote personal

computer

100.100.100.100

Note) 192.168.0.x

represents a

private IP address.

100.100.100.100

and 172.16.x.x

represent global IP

addresses.
