FANUC i-Cell Operators manual Page 673

Operators manual
32/98
SHEET
DESCRIPTION
DESIGN
DATE
EDIT
01
FANUC LTD.
DRAW.NO.
Matsukura
Newl
y
re
g
istered
TITLE:
FANUC CIMPLICITY i CELL
OPERATOR’S MANUAL
05.05.19
B-75074EN/04-2
Terminal waiting time (ms) of a log thread.
Default = 5000
Item 7. Retry interval in busy case
Retry interval (ms) to be assumed if a write process is busy.
Default = 1000
Item 8. Retry number in busy case
Number of retries to be assumed if a write process is busy.
Default = 2
<Default (Only Detail)> Button
Used to change all items (of groups 1 and 2) in the Init/Term
Scripts Detail Settings window to their defaults. This does not
change the items in the Init/Term Scripts General Settings
window.

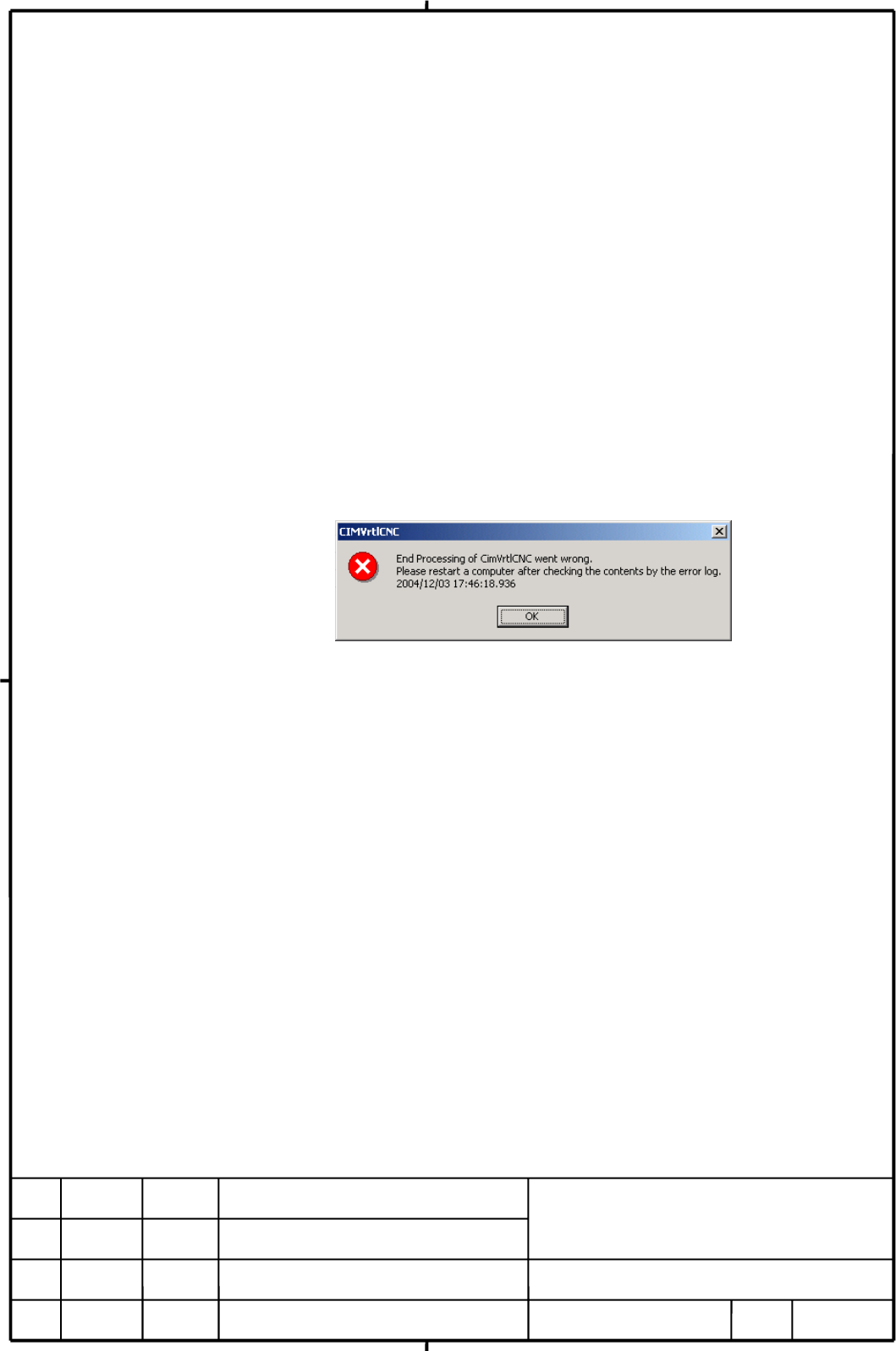

NOTE The time required for a termination process varies depending on the
number of CNCs connected. If the following message appears during
termination, it is possible that the termination process is not completed
in the default timeover time.
If this occurs, change the setting of Terminal waiting time of
communication thread (item 4).
Also, the following are recorded in the CimVrtlCnc Error Log:
Example 1: There is no response of the completion of end
preparation from a [thread-name].
Example 2: End Processing of [thread name] went wrong.
Example 3: There is no response from a [thread-name].
(ErrNo.0x???.0x?)
where [thread-name] is replaced by one of the following character st
rings:
Point setting thread
Point change surveillance thread
Power supply check thread
Writing thread
Reading thread (1)
Reading thread (2)
Reading thread (3)
