8.NC DISPLAY AND OPERATION OPERATION B-75074EN/04

- 340 -

8.4 PROGRAM CHECK

The program check screen can be used to check the NC program

currently being executed.

This screen also displays the following information:

(1) Modal information

(2) Actual speed information

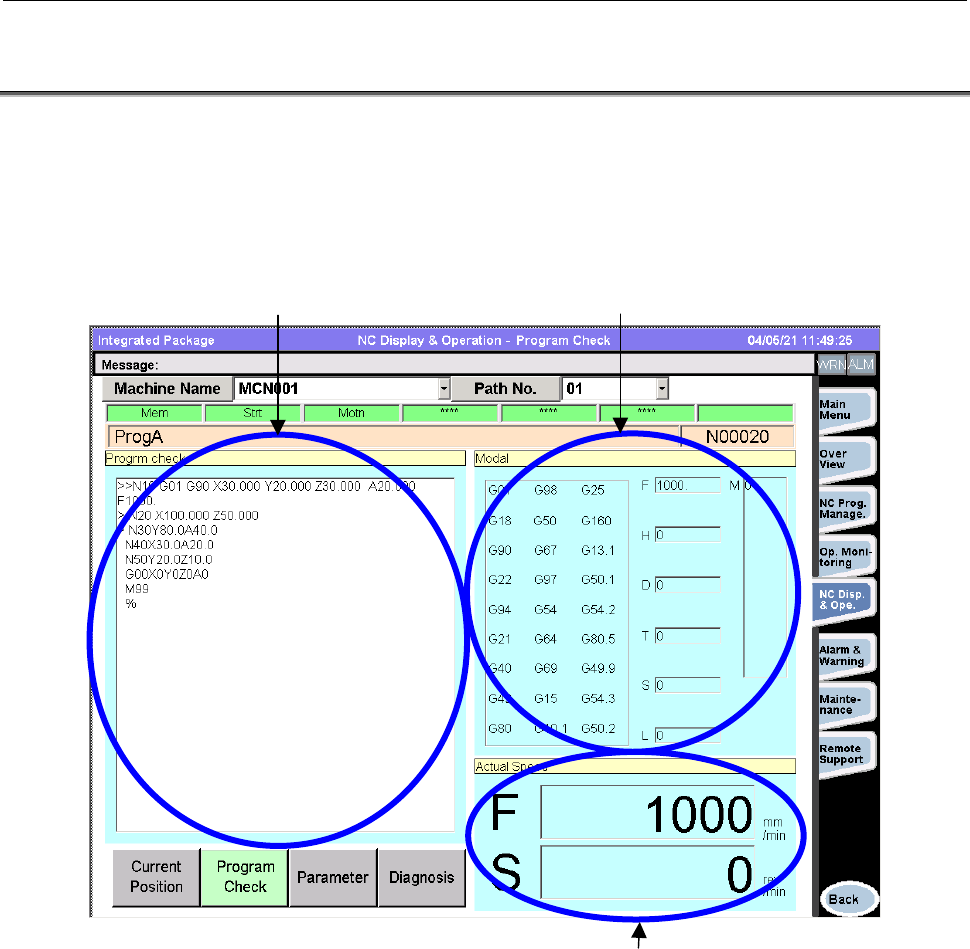

Example of the program check screen

<1> Program check screen

The NC program currently being executed is displayed.

<2> Modal information display

Modal information such as G code information is displayed.

<3> Actual speed information display

The actual speed and spindle speed are displayed.

<1> Program check display

<2> Modal information display

<3> Actual speed information display
