Multiple Point Groups may be set. Reading from points not in a Point

Group is not performed; all points from which to read data must be set in a

Point Group. A Point Group is not related to a particular machine; it is

possible to set points in different machines in a single Point Group.

For an explanation of how to set Point Groups, see Subsection 5.2.3, "Point

Group".

5.5.4 CNC Power Status Monitor Function

This function monitors the power ON/OFF state of a CNC, and sets True at

the power status monitor point if the power is ON and False if it is OFF.

For an explanation of power status monitor points, see Subsection 5.5.8.5,

"Power status monitor point".

In older versions, the power status could be monitored only in a

same-network configuration such as that shown in Fig. A, but in version 1.4

or later, the state can be monitored in a different-network configuration such

as that shown in Fig. B.

Note, however, the CNC power status monitor function differs in the time

required to recognize the power OFF state of a CNC depending on the

network configuration.

In the same-network configuration shown in Fig. A, there occurs a delay of

only several seconds from the time the power of the CNC turns OFF until

CNC Connection recognizes it. In the different-network configuration

shown in Fig. B, on the other hand, the time set for FwLib time-out is

required until CNC Connection recognizes the power OFF state. For an

explanation of setting FwLib time-out, refer to Subsection 2.6.2, "Setting up

FOCAS2/Ethernet Communication" in Part III, "SETTING", in the i CELL

Operator's Manual.

CNC

Router

CNC

The PC and the CNCs

belong to different

networks connected via

a router.

The PC and the CNCs all belong to the same

network.

Network A

Network B

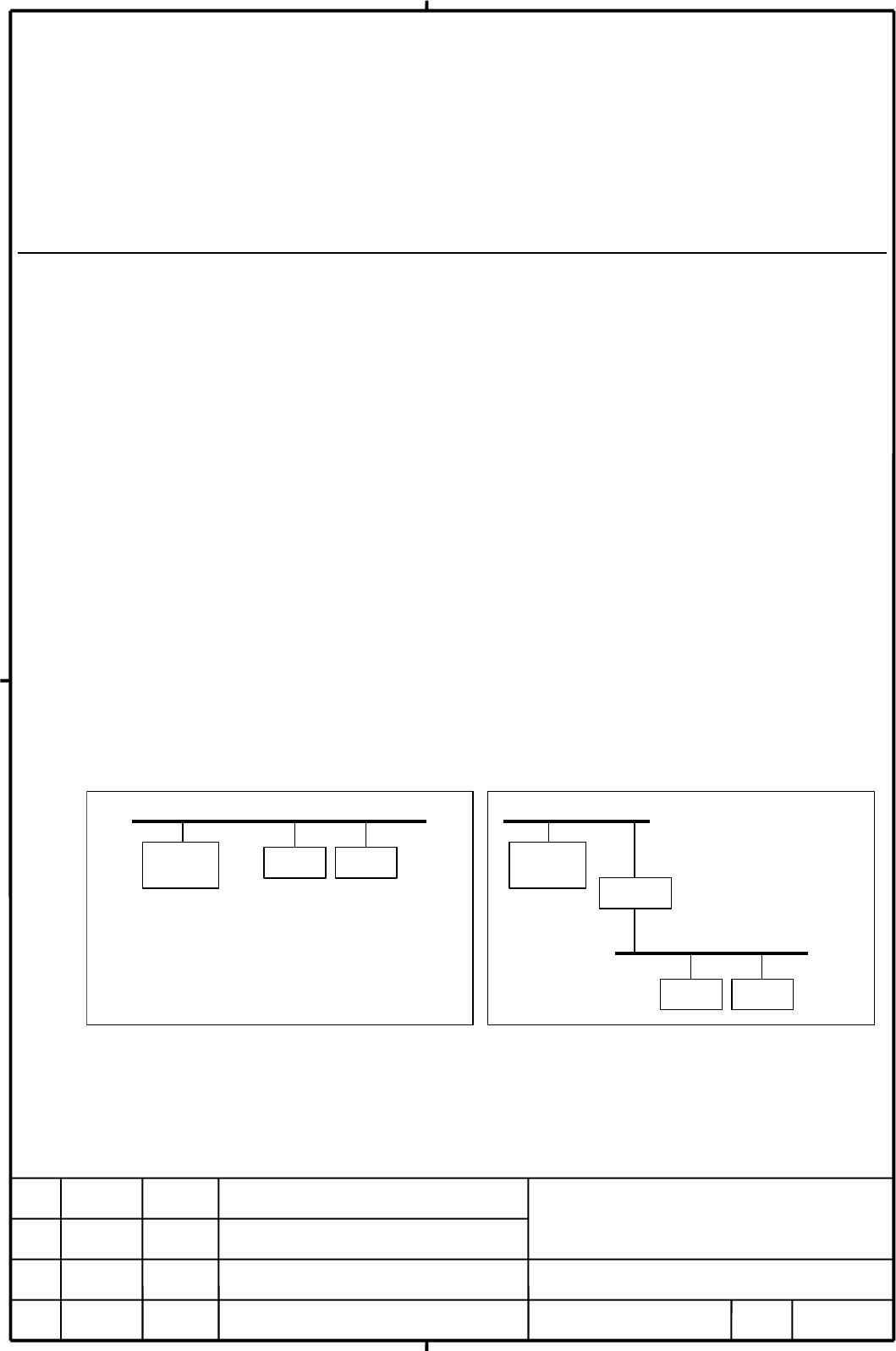

Fig. A Same-network configuration Fig. B Different-network configuration
