B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 279 -

NOTE

When folder downloading is performed, the result of

the downloading operation is written in the result file.

The contents of the result file are displayed in the

Result downloaded folders dialog box described

later, so you need not open this file to check the

results.

The result file is created

in %iCELL%\CimProject\Fanuc\Data\. The file

name is XXX_FolderDownloadResult.ini, where

XXX denotes the machine number. The file is

overwritten each time a selected folder is

downloaded.

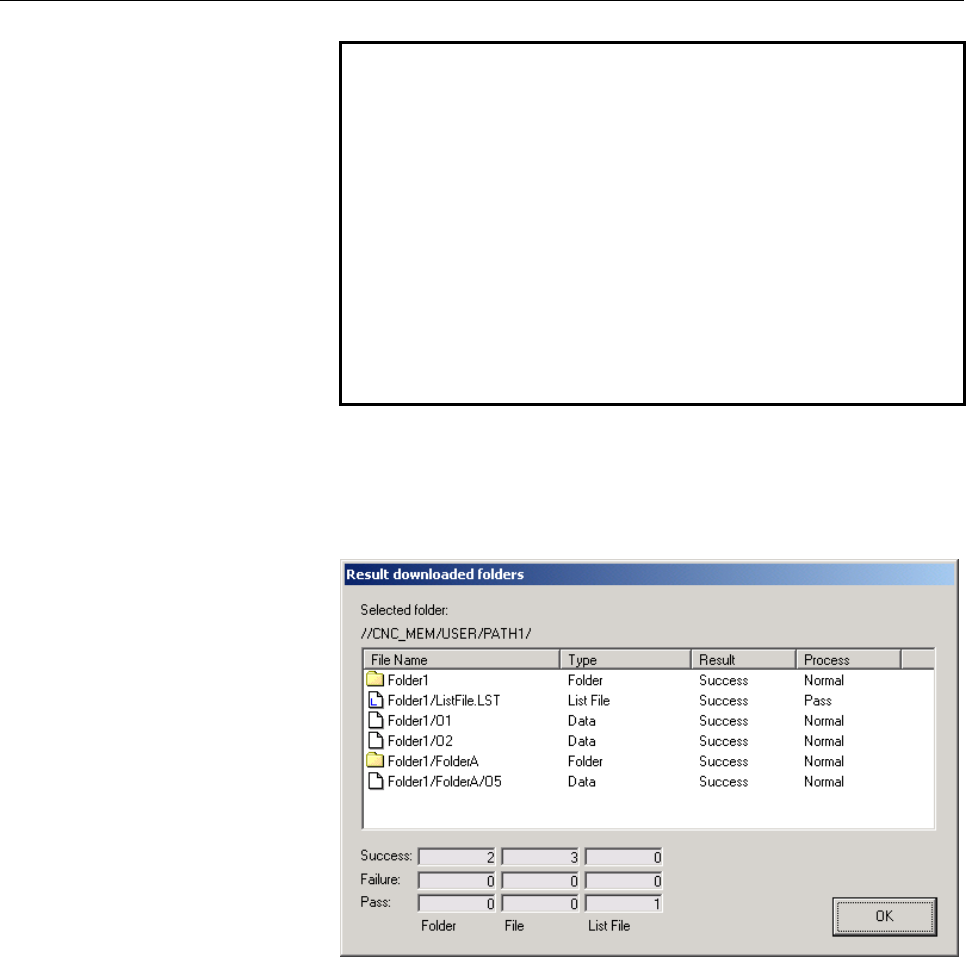

4 Click the <Download> button. When folders are included, the

result dialog box as shown below is displayed each time a selected

folder is downloaded. When a folder contains a list file, the list file

is not downloaded. If downloading fails, an error code is indicated

in the Result column.

• Selected folder:

Indicates the path of the download destination folder.
