/ 739

4.WEB SETTING B-75074EN/04

- 200 -

4.4 ITEM NAME

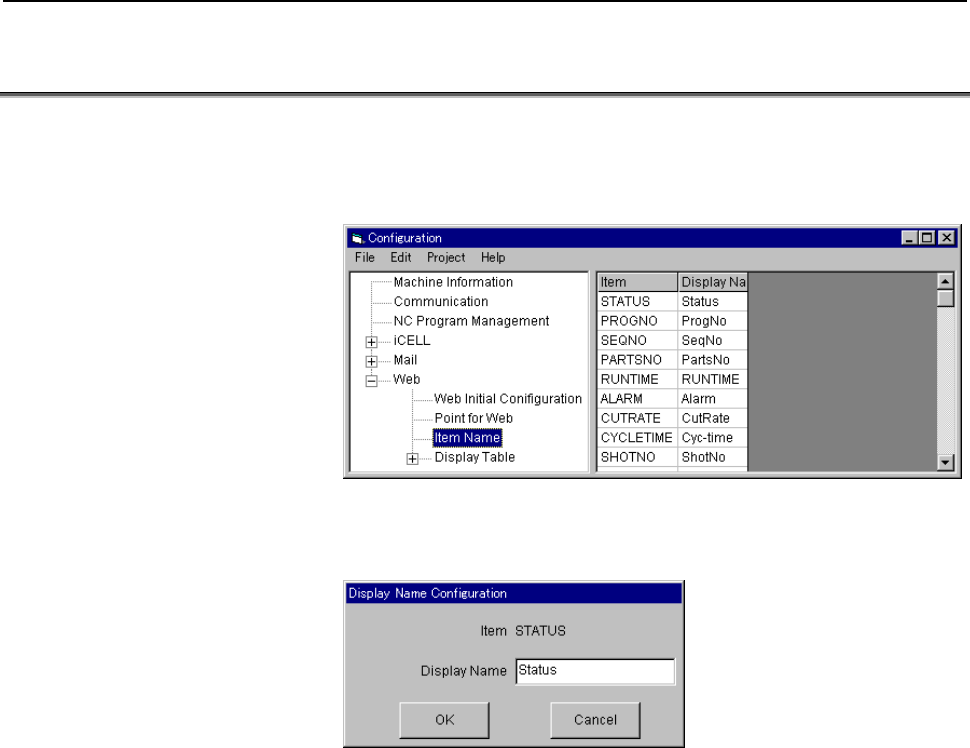

Selecting Web and Item Name from the tree lists display names for the

currently set items in the grid.

Character strings listed under Display Name are displayed as item

names on the machine detail screen over the Web.

If you double-click a row in the grid, or if you click a row in the grid and

select Edit from the menu bar, then Property from the Edit menu, the

Display Name Configuration dialog box appears.

The Display Name box lets you enter an item name to be displayed on

the Web screen. The item name can consist of up to four full-size or

eight half-size characters.

Clicking the OK button saves what you specified and closes the Display

Name Configuration dialog box. Clicking the Cancel button closes the

dialog box without saving what you entered.
