B-75074EN/04 SETTING 3.MAIL

- 185 -

3.1.4 Flow of Setting

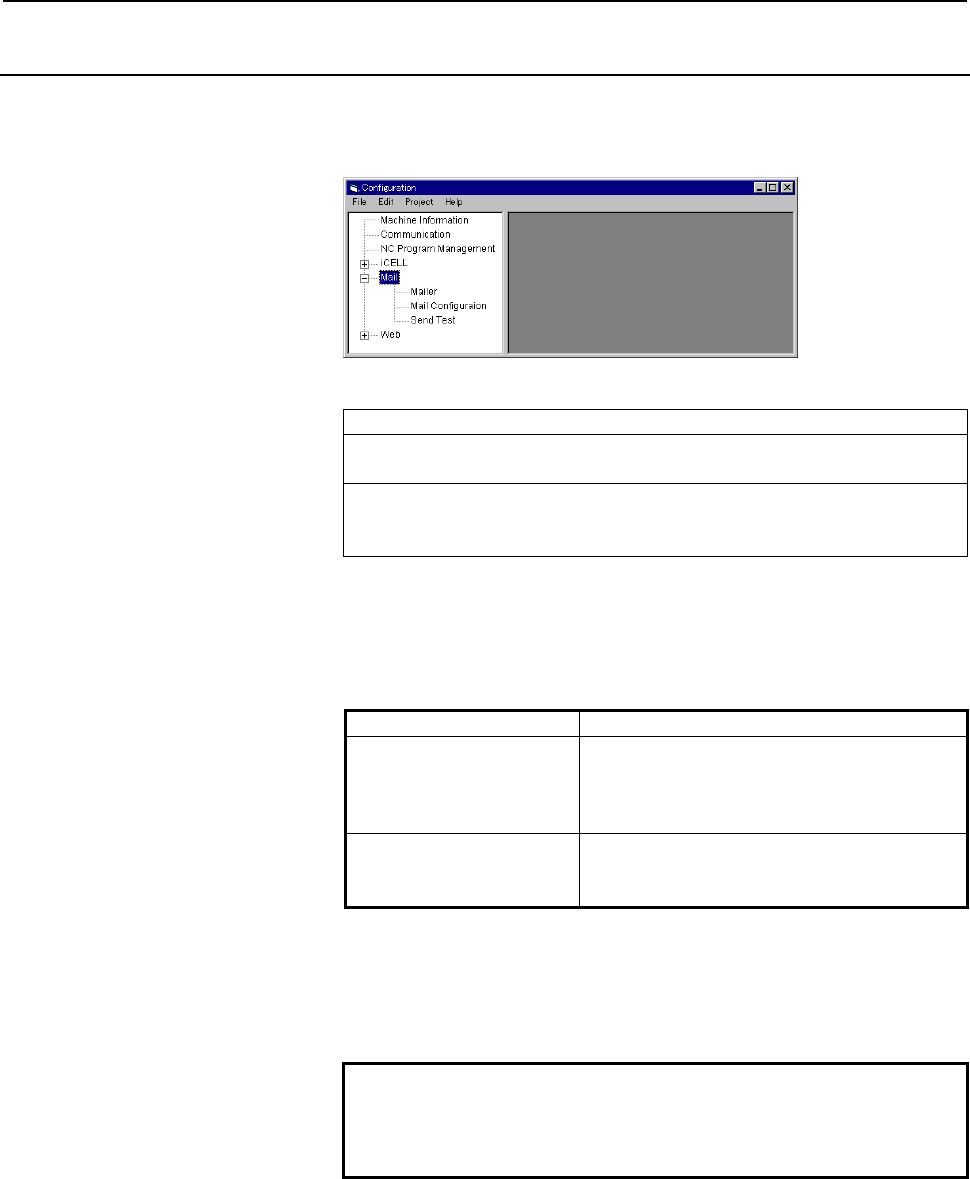

After selecting Project from the menu bar and Property from the Project

menu, turning on the mail function causes the item mail to appear in the

tree. There are Mailer, Mail Configuration, and Send Test under Mail.

The setting items in this dialog box are explained below.

Mailer

Sets items related to the mailer of your Internet provider.

Mail

Configuration

Specifies when each mail message is to be output.

Send Test

Allows you to conduct a test to check whether mail

messages are sent correctly using the settings for

“Mailer.”

So, you first make settings with Mailer and then check that mail is sent

properly, using Send Test. You also specify Mail Configuration as

required.

“Mailer” lets you specify whether to enable mail transmission.

Mail transmission Description

Enable

Mail is sent automatically according to the

setting at “Mail Configuration.”

The contents of “Mail Configuration” cannot be

changed.

Disable

No mail is sent.

The contents of “Mail Configuration” can be

changed.

To change the setting at “Mail Configuration,” follow this procedure.

<1> With “Mailer,” disable mail transmission.

<2> With “Mail Configuration,” change its contents as required.

<3> With “Mailer,” enable mail transmission.

NOTE

Note that if you forget to enable mail transmission

after the contents of “Mail Configuration” is

changed, mail transmission remains disabled.
