2.BASIC FUNCTIONS SETTING B-75074EN/04

- 128 -

2.3 MACHINE COUNT CONFIGURATION

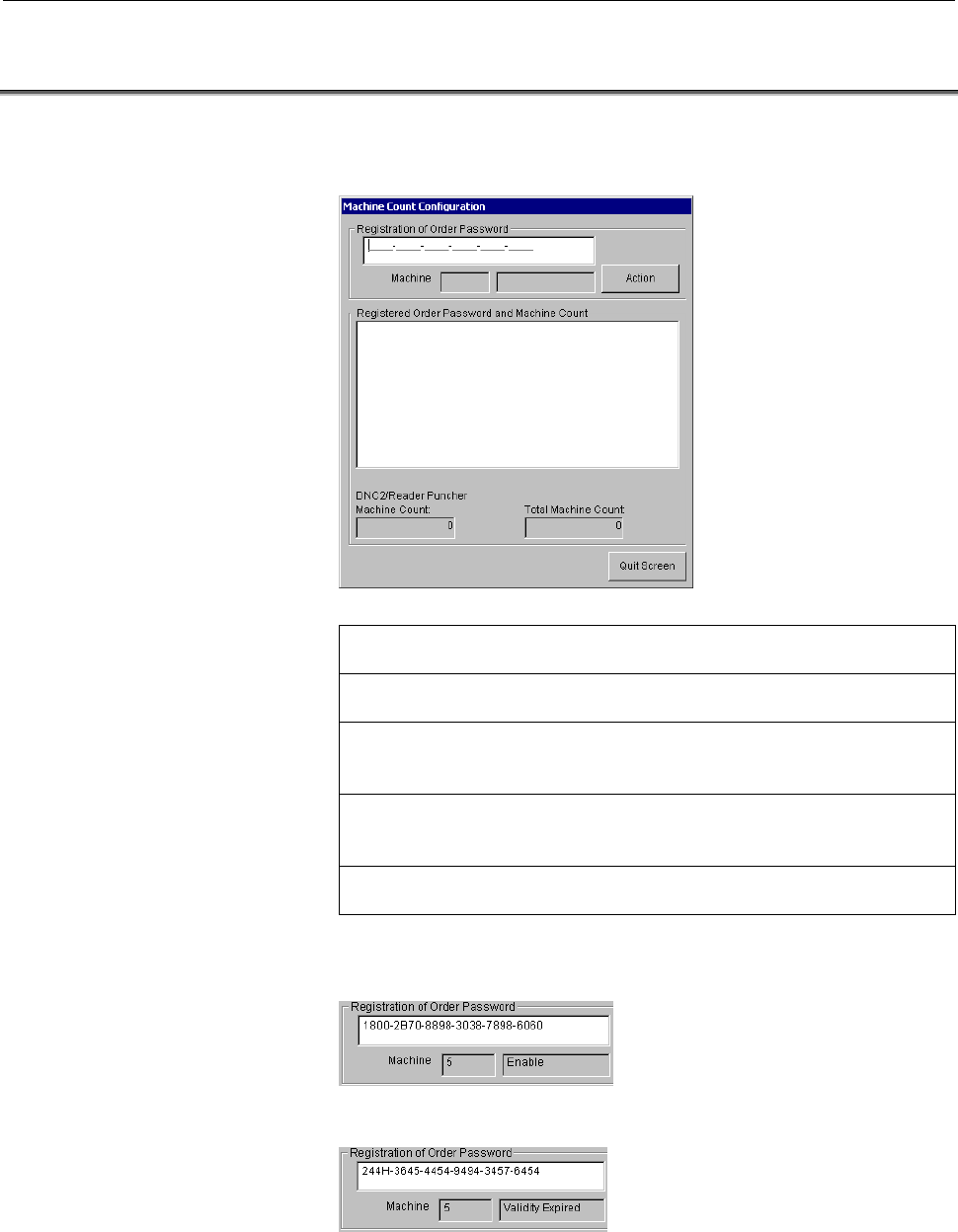

Selecting Project from the menu bar of the Configuration dialog box,

then Machine Count Configuration from the Project menu displays the

Machine Count Configuration dialog box.

This dialog box lets you register an order password.

Registration of

Order Password

Enter a 24-digit order password. Clicking the Action

button causes what you entered to be registered.

Machine

This box indicates the number of machines that

corresponds to the entered order password.

Registered Order

Password and

Machine Count

This box lists the order passwords that are already

registered as well as the number of machines related to

each of the order password.

DNC2/Reader

Puncher

Machine Count

This box indicates the number of machines that can be

connected using the DNC2 or Reader/Puncher

communication protocol.

Total Machine

Count

This box indicates the total number of machines that

corresponds to the registered order passwords.

If an entered order password is correct, the number of machines

corresponding to the order password and whether the term of validity

for the order password has expired are displayed as shown below.

If the term of validity has expired, the following display appears,

disabling registration.

When you register the order password for the i CELL main package, the

value of Total Machine Count is incremented by 5. When you register

the order password for a CNC connection option, the values of

DNC2/Reader Puncher Machine Count and of Total Machine Count are

incremented by the number indicated with the option.
