B.NC SETTING APPENDIX B-75074EN/04

- 520 -

FTP transfer screen

Press soft key [FTP TRANS] to display the FTP transfer screen.

By using page keys

PAG E

, the three host computers at connection

destinations 1, 2, and 3 can be set.

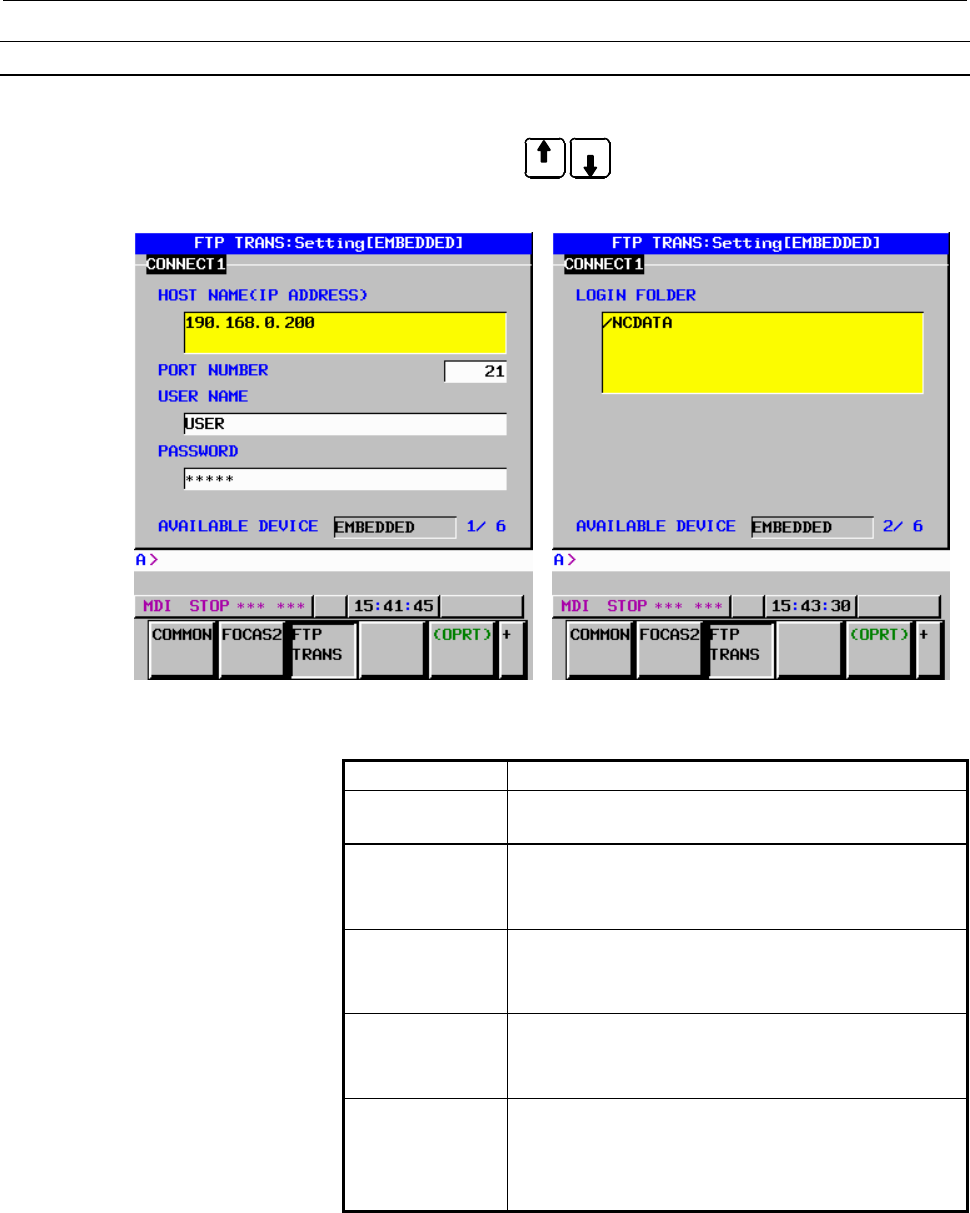

FTP transfer screen (1st page) FTP transfer screen (2nd page)

Setting item

Item Description

HOST NAME

Specify the IP address of the host computer.

(Example of specification format: "192.168.0.200")

PORT NUMBER Specify a port number to be used with the FTP file

transfer function. An FTP session is used, so that "21" is

to be specified usually.

USERNAME Specify a user name to be used for logging in to the host

computer with FTP.

(Up to 31 characters can be specified.)

PASSWORD Specify a password for the user name specified above.

(Up to 31 characters can be specified.)

Be sure to set a password.

host computer. (Up to 127 characters can be specified.)

If nothing is specified, the home folder specified in the

host computer becomes the log-in folder.
