5.NC PROGRAM MANAGEMENT OPERATION B-75074EN/04

- 292 -

NOTE

1 When a directory is deleted, all files and directories

included in the directory are deleted.

2 Deleted files and directories are completely

removed from the connection destination. Take

special care when deleting files and directories.

Renaming files or directories of the connection destination

NOTE

When the communication function is

FOCAS2/Ethernet (other than Series 30i/31i/32i),

DNC2, or reader/puncher, neither files nor directory

can be renamed.

1 Click a file or directory to be renamed in the File List of

connection destination.

2 In the [Communication] menu or the menu displayed by

right-clicking on the selected file, click the [Rename] command.

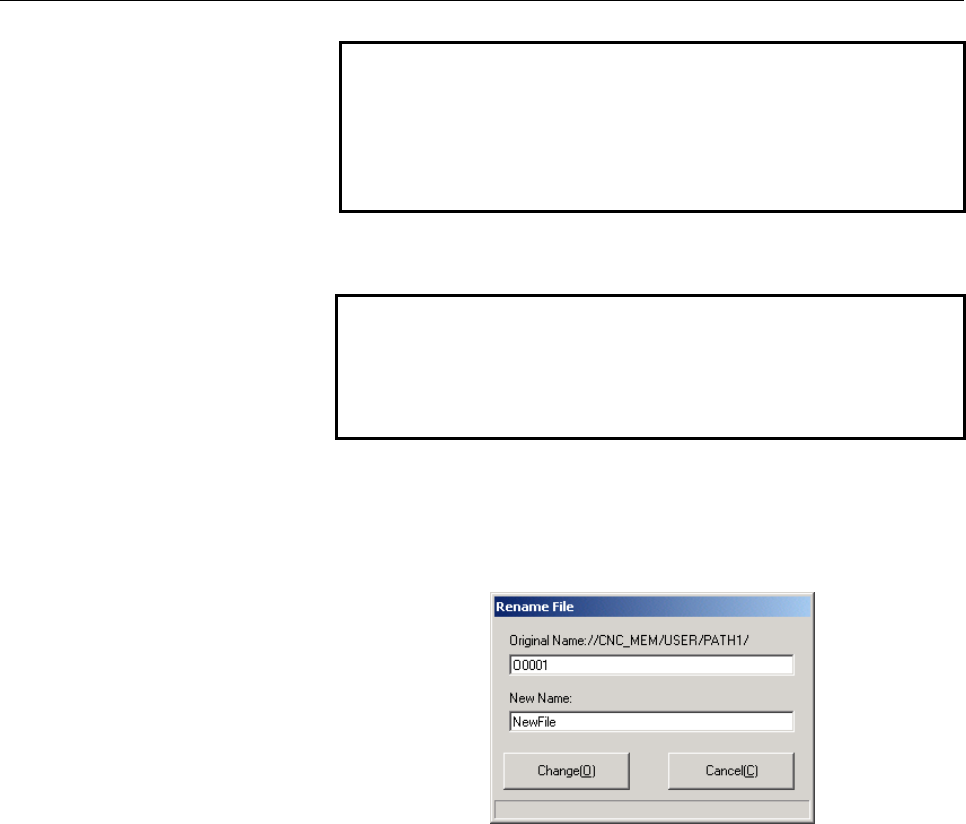

The [Rename File] dialog box is displayed.

3 Enter a new name in the [New Name] text box then click the

<Change> button. Unless a name is entered in the text box, the

<Change> button does not become effective.
