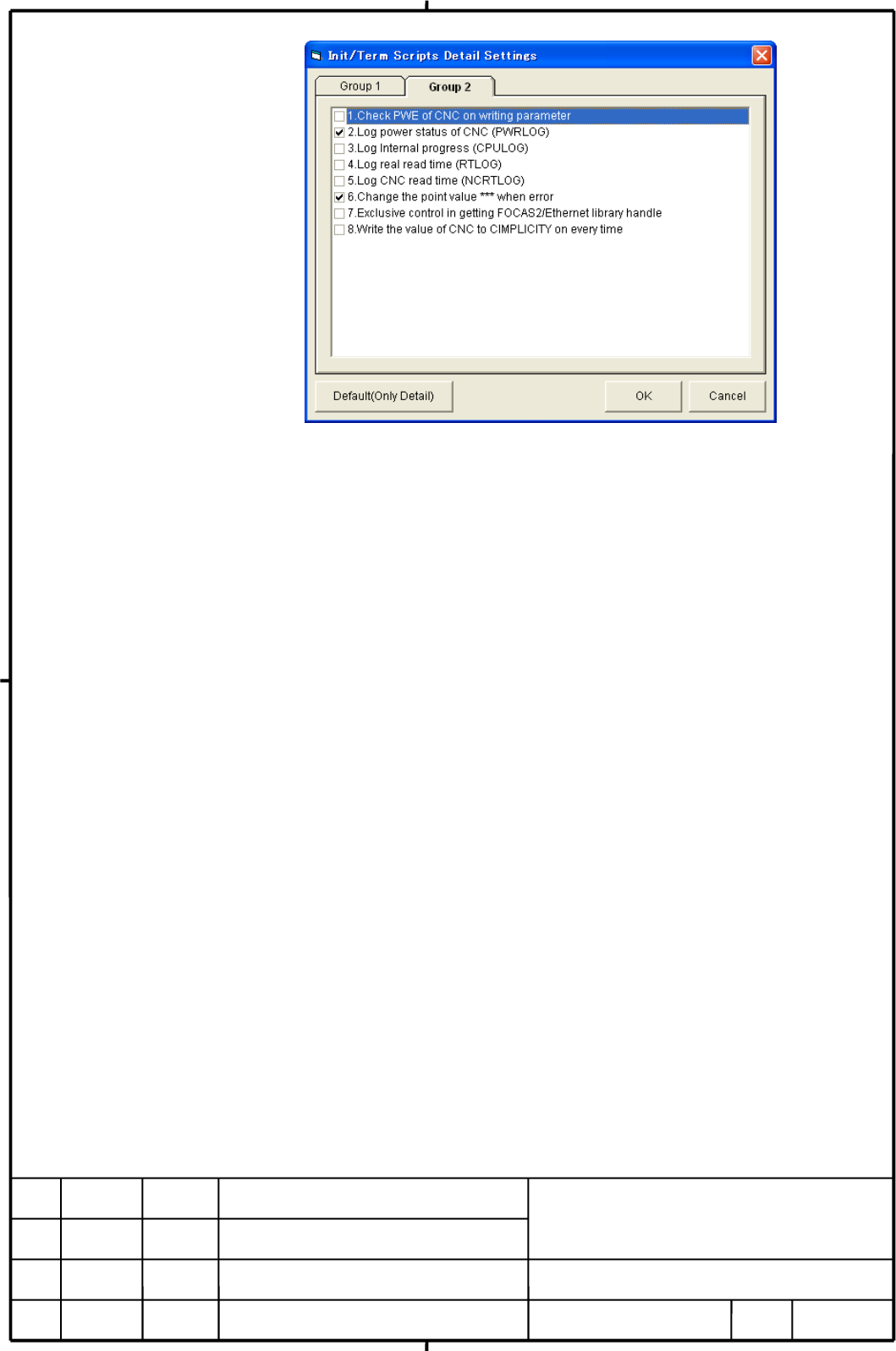

Group 2

Item 1. Check PWE of CNC on writing parameter

Whether to the CNC parameter write enable setting when

changing the values of CNC parameters from a personal computer.

Check placed: Check

Check not placed: Not check (default)

Item 2. Log power status of CNC (PWRLOG)

Whether to output CNC power ON/OFF status changes to the log.

Check placed: Output (default)

Check not placed: Not output

For details of the log, see Subsection 5.5.7.1, "PWRLOG – CNC

power status".

Item 3. Log Internal progress (CPULOG)

Whether to output the log for checking the progress of internal

processing.

Check placed: Output

Check not placed: Not output (Default)

For details of the log, see Subsection 5.5.7.2, "CPULOG –

Progress of internal processing".

Item 4. Log real read time (RTLOG)

Whether to output the real read process time for each CNC and for

each read interval (time required to read CNC data and time

required to write to a point) to the log.

Check placed: Output

Check not placed: Not output (default)
