E.DETAILS OF CIMPLICITY POINTS APPENDIX B-75074EN/04

- 562 -

E.1 OVERVIEW

Restrictions by communication protocol

A point is created for a machine of which communication protocol is

FOCAS2/Ethernet or DNC2. No point is created for a machine with the

reader/puncher interface.

E.1.1 CIMPLICITY Points and i CELL

CIMPLICITY manages data as a "point." A point is a variable that has a

defined value. i CELL displays CIMPLICITY point values on the

screen, adds them up, and saves the sum to a database.

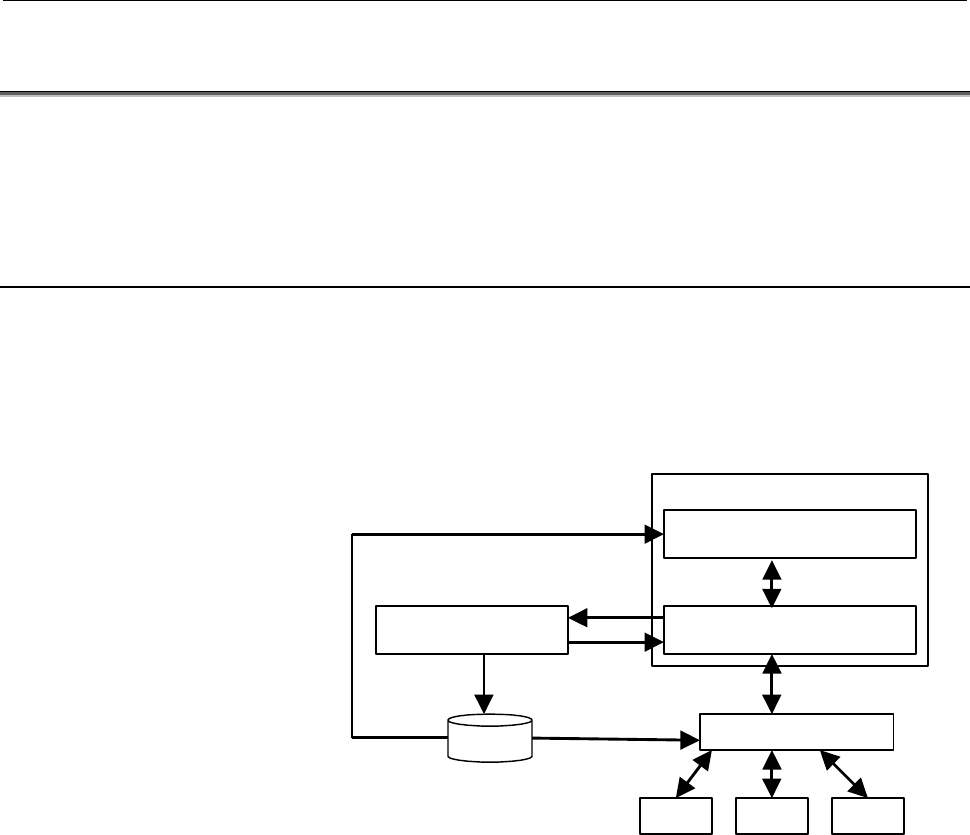

The following chart shows the relationships between CIMPLICITY

points and i CELL.

CELL configuration

screen

CIMPLICITY

CELL

CIMPLICITY point

NC connection function

NC NC NC

<1>

<2>

<3>

<4>

<5>

CELL setting

<6>

<1> The i CELL configuration screen reads the point setting of

CIMPLICITY.

<2> By acting on the i CELL configuration screen, the operator adds

machines and modifies i CELL functions. According to what the

operator performed, the i CELL configuration screen changes the

CIMPLICITY points.

<3> The i CELL configuration screen saves the i CELL setting. It also

reflects a change to the CIMPLICITY point setting to

CIMPLICITY.

<4> The NC connection function reads the i CELL setting.

<5> The NC connection function communicates with the NC

according to the i CELL setting it read. Values read from the NC

are reflected to the CIMPLICITY points, and the CIMPLICITY

point values are written to the NC.

<6> i CELL reads the i CELL setting, and reads and writes

CIMPLICITY point values according to the i CELL setting. It also

displays the point values on the screen, and adds them up and

saves them to a database.
