5.NC PROGRAM MANAGEMENT OPERATION B-75074EN/04

- 308 -

Registering Files in the Same Directory as List Files Using Only the File Name

Normally, the files to transfer to the List File are registered using their

full path.

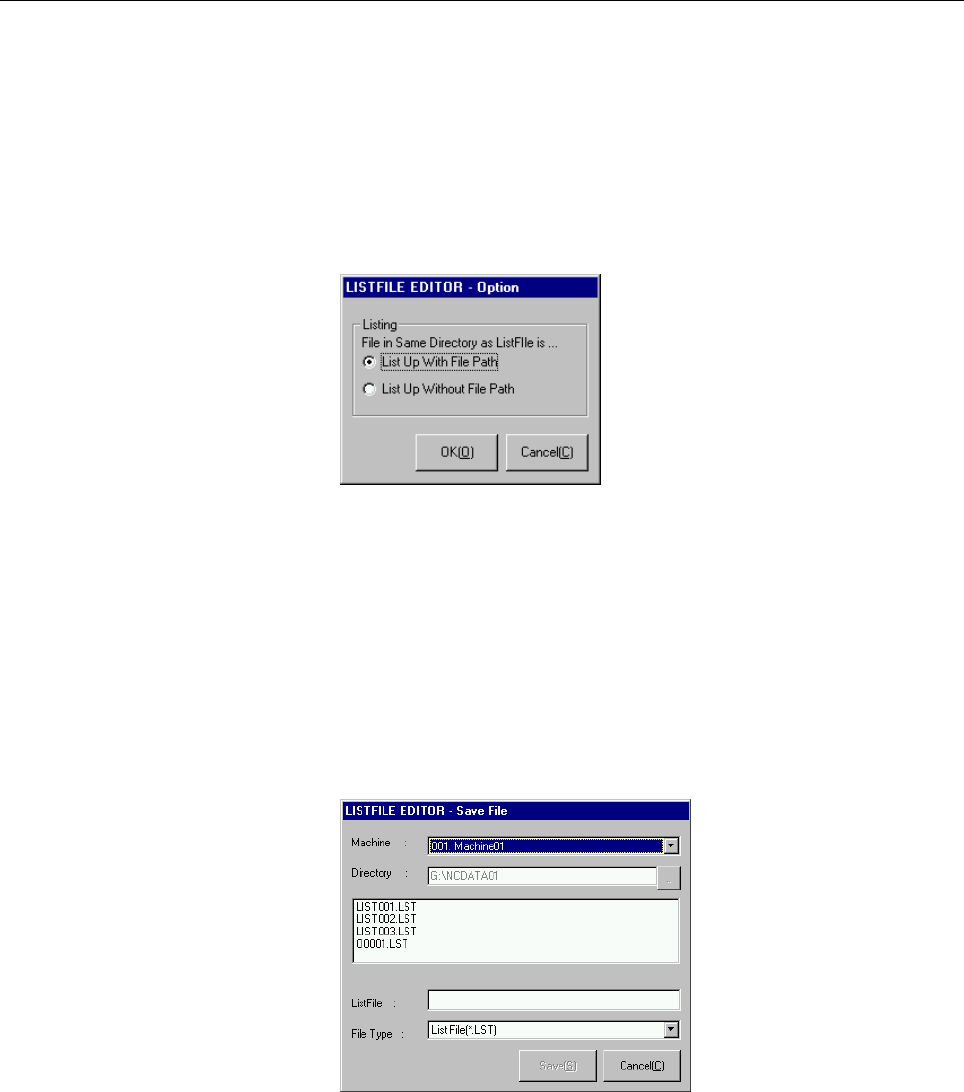

The Option screen allows you to select whether to register only a file

name or register the file by its full path.

Specify registration by only a file name when you do not want to

having a different default directory.

To set this, click the [Option] command in the [Tool] menu.

In the List Files registered by only a file name, only the file name is

displayed even in the [Contents of List] list box.

Overwriting List Files

To save the file currently being edited under the same name, click the

[Overwrite] command in the [File] menu.

Saving to List Files Under a New Name

To save the file currently being edited under a new name, click the

[Save As] command in the [File] menu. The [Save As] dialog box

appears.

1 Select the directory for saving the List File from the [Machine]

combo box. The directory name is displayed in the [Directory] text

box.

2 Enter the List File name that you want to save to from the

[ListFile] text box.

3 Click the <Save> button.

Exiting the Screen

Click the [Exit] Command in the [File] menu.
