B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 273 -

5.2.6 Downloading and Uploading NC Programs

This subsection explains how to download and upload NC programs

through communication with NC memory (for the FOCAS2/Ethernet

and DNC2 functions) and through communication with a data server

(FTP server) (for the data server function).

NOTE

When i CELL is used on the CIMPLICITY viewer to

download NC programs to or upload NC programs

from NC memory, the viewer PC can perform only

downloading from the default directory and

uploading to the default directory.

5.2.6.1 Communication with the NC memory

Displaying the List of NC Programs in the Memory of NC

1 Click a machine in the Machine List of the Machine List of

Connection Target. Then, communication with the clicked

machine starts.

(The start of communication when a machine is clicked can be

suppressed by option setting. For details, see the description of the

communication tab in Subsection 5.2.10, "Setting Options". When

this option is set, communication is started by clicking the [Start

Communication with NC Memory] command in the

[Communication] menu.)

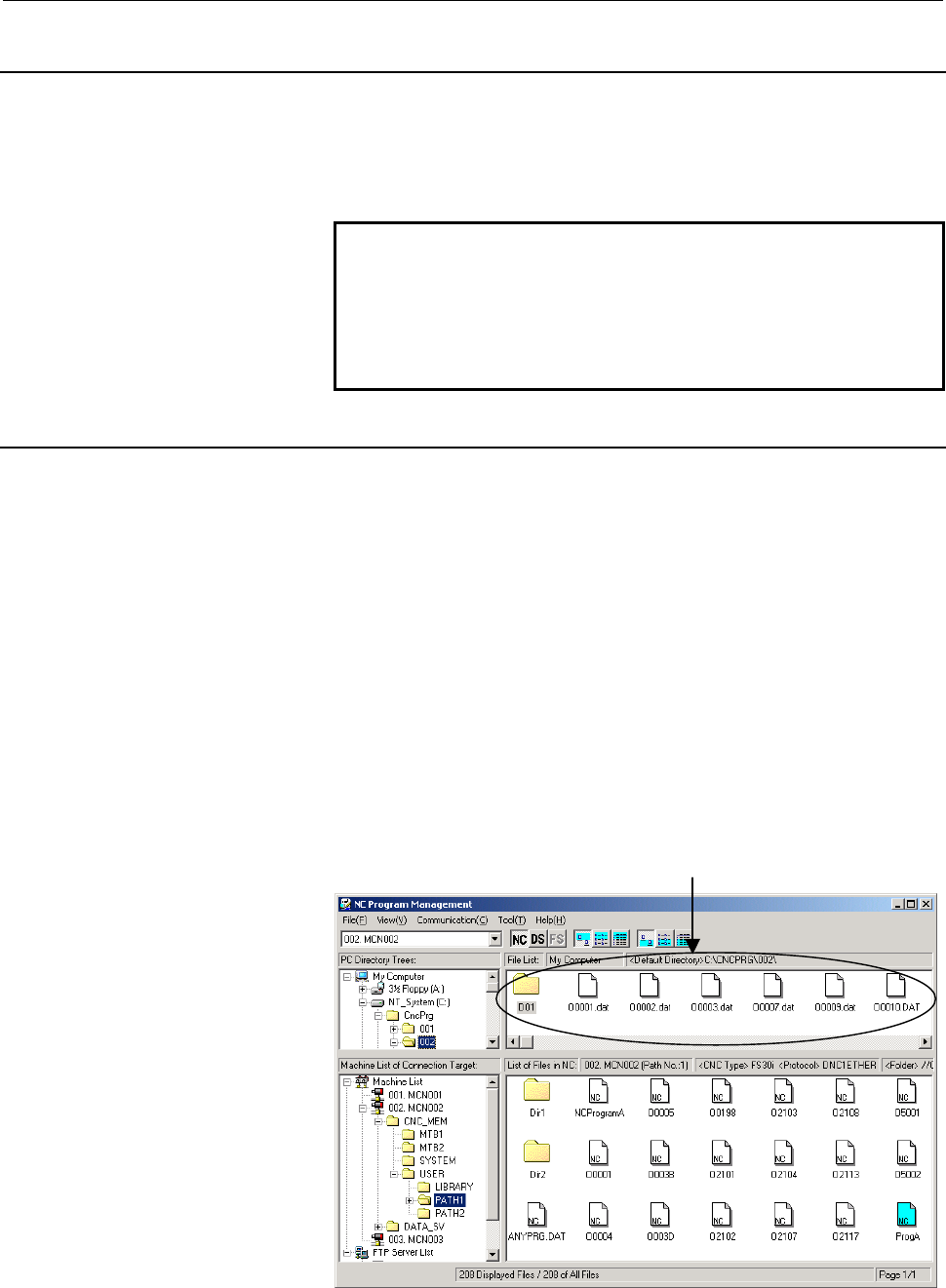

The PC side File List shows the contents of the default directory

set for the machine.

Displays a list of files of the default director

assigned to machine MCN002.
