5.NC PROGRAM MANAGEMENT OPERATION B-75074EN/04

- 276 -

2 The communication destination switches to the selected path, and

the contents of the File List of the connection destination change

to display the file list for the path.

In the current management status bar of the connection destination,

the currently selected path is displayed. With a CNC other than

Series 30i/31i/32i, the currently selected path is highlighted in the

Machine List of Connection Target.

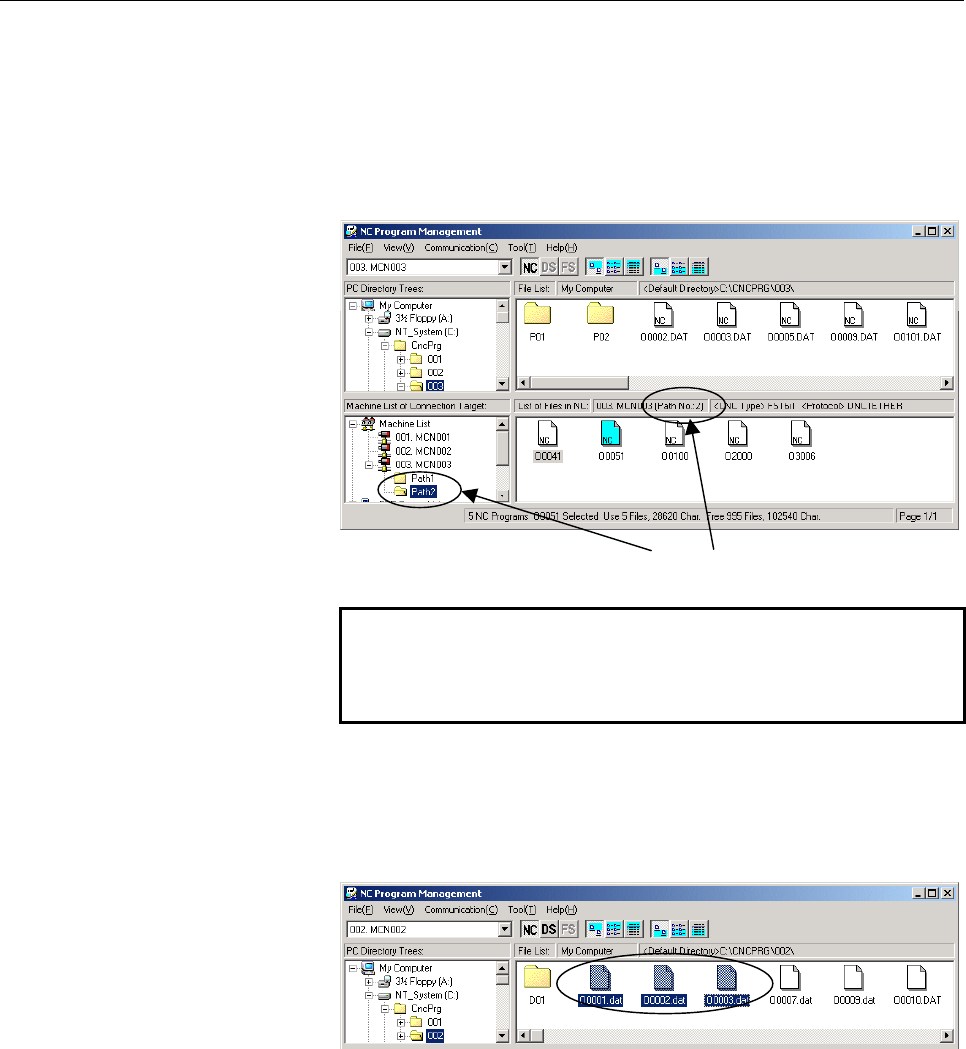

Path currently selected

NOTE

Even when selecting a path indicated under a

machine name in the Machine List of Connection

Target, you cannot change the communicating path.

Downloading an NC Program

1 Select the file you want to download from the PC side File List.

You can select more than one file by clicking files while pushing

the [Ctrl] key. When the connected CNC is Series 30i/31i/32i, you

can also select folders.

2 Perform one of the following operations:

A) Drag and drop the file selected in the PC side File List to the

File List of the connection destination. When the file is

dropped to a blank space or a file in the File List of the

connection destination, the file is downloaded to the folder

for which the File List of the connection destination is

displayed. When the file is dropped to a folder displayed in

the File List of the connection destination, the file is

downloaded to the folder (dropping to a folder is enabled

only when the Series 30i/31i/32i is connected).
