B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 265 -

5.2.3 Copying, Moving, Deleting and Renaming Files (and

Directories) in the PC

This subsection explains how to copy, move, delete, and rename files in

the PC. The subsection also explains how to delete and rename

directories.

Copying Files in the PC

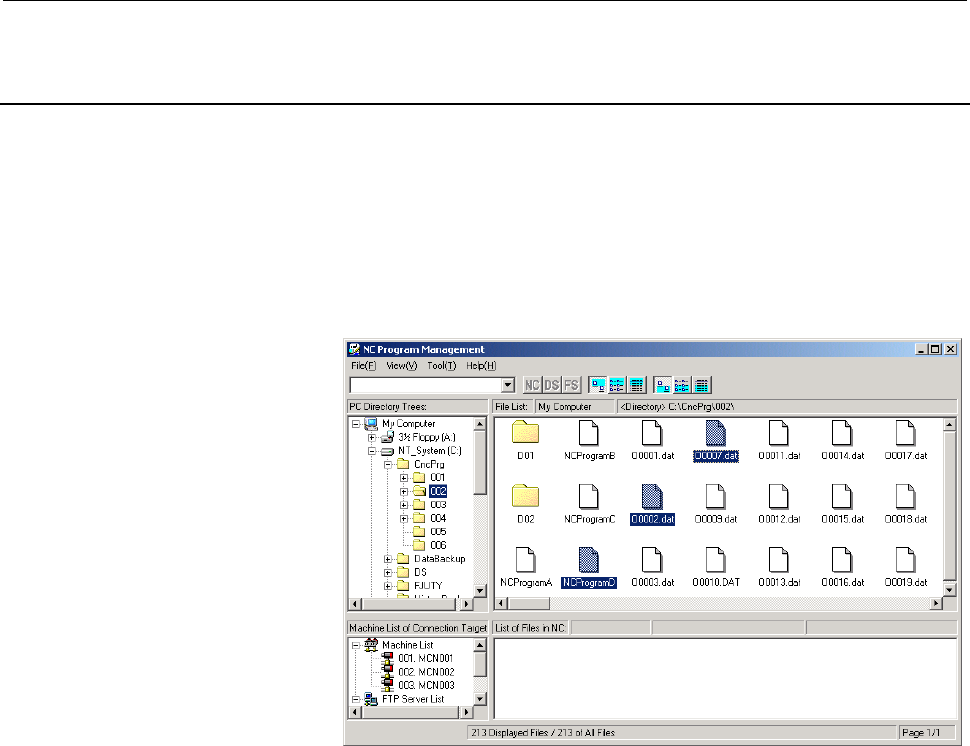

1 In the PC side File List, click the file you want to copy.

You can select more than one file by clicking files while pushing

the [Ctrl] key.

2 Perform a menu operation or drag and drop operation.

A) Menu operation

In the [File] menu or the menu displayed by right-clicking on

the selected file, click the [Copy] command. Alternatively,

press the [Ctrl+C] keys. Then, the selected file is registered in

the work list. (The work list is not displayed.) Proceed to step

B) Drag and drop operation

Drag the selected file to a directory in the PC Directory Trees

or the PC side File List, and drop the file while holding down

the [Ctrl] key. (The dragged and dropped file is not registered

in the work list.) The [Copy File] dialog box is displayed.

Proceed to step 5.
