B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 277 -

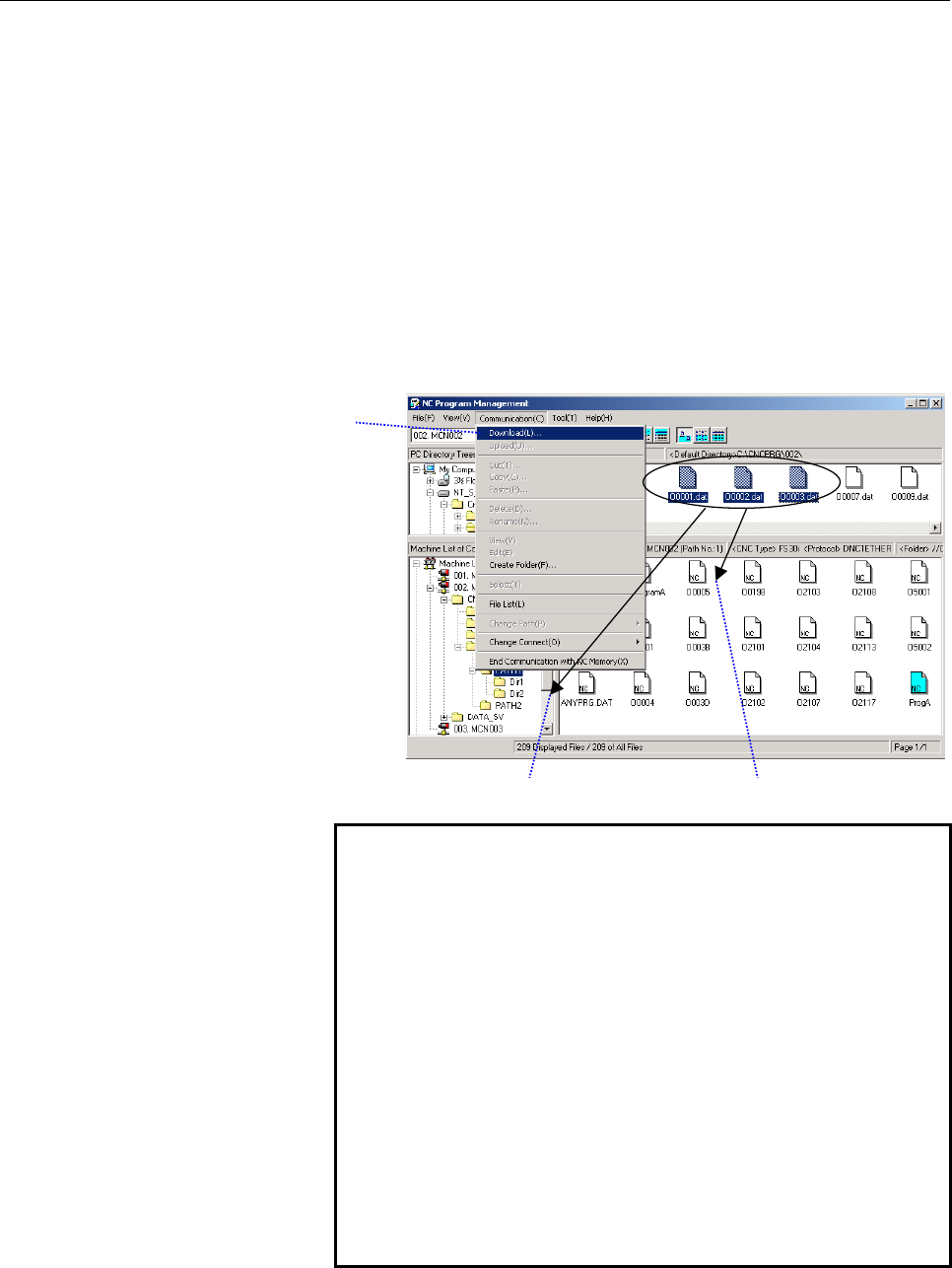

B) Drag and drop the file selected in the PC side File List to a

folder under the name of the connected machine in the

Machine List of Connection Target (this operation is enabled

only when Series 30i/31i/32i is connected).

C) In the [Communication] menu or the menu displayed by

right-clicking on the selected file, click the [Download]

command.

When a file is selected in the File List of the connection

destination, the file is downloaded to the folder for which the

File List of the connection destination is displayed.

When a folder is selected in the File List of the connection

destination, the file is downloaded to the folder

(downloading to a folder is enabled only when Series

30i/31i/32i is connected).

NOTE

1 When Series 30i/31i/32i is connected, and

downloading is specified by selecting the

[Download] menu item, files are downloaded to a

folder if the folder is selected in the File List of the

connection destination.

Before the menu operation, check the file or folder

selected in the File List of the connection

destination.

2 If the connected CNC is a multipath system other

than Series 30i/31i/32i, folders indicating path

names are displayed in the Machine List of

Connection Target. However, downloading to a path

not connected cannot be performed.

3 Downloading from a directory of the network drive

cannot be performed.
