B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 297 -

5.2.9 Creating a New Connection Destination Directory

Creating a new directory on the connection destination

NOTE

Only when the communication function is

FOCAS2/Ethernet (Series 30i/31i/32i only) or data

server (FTP server), a new directory can be created.

1 In the Machine List of Connection Target, click the directory in

which you want to create a new directory to specify the selected

directory as the current management directory of the connection

destination.

2 In the [Communication] menu or the menu displayed by

right-clicking in the File List of the connection destination, click

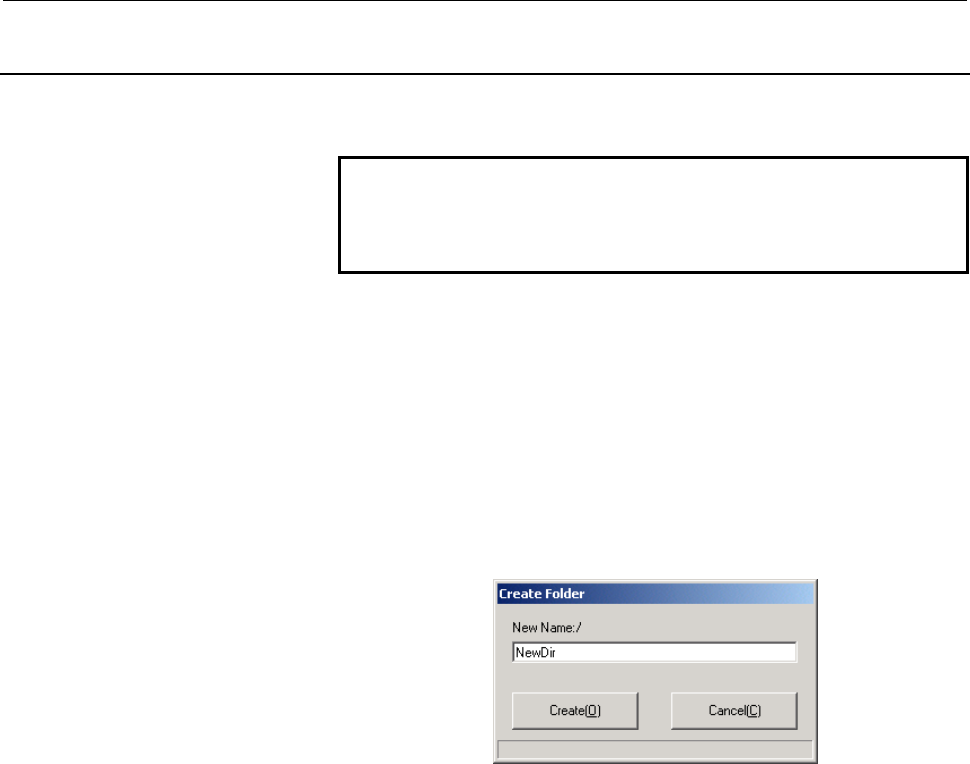

the [Create Folder] command. The [Create Folder] dialog box is

then displayed. When the command is executed from the menu

displayed by right-clicking, right-click on a place in which neither

file nor directory is displayed in the File List. If you right-click on

a file or directory, you cannot use the [Create Folder] command.

3 Enter the name of the directory to be created in the [New Name]

text box, then click the <Create> button. Unless a name is entered

in the text box, the <Create> button does not become effective.
