5.NC PROGRAM MANAGEMENT OPERATION B-75074EN/04

- 304 -

5.3.2 Editing List Files

Creating New List Files

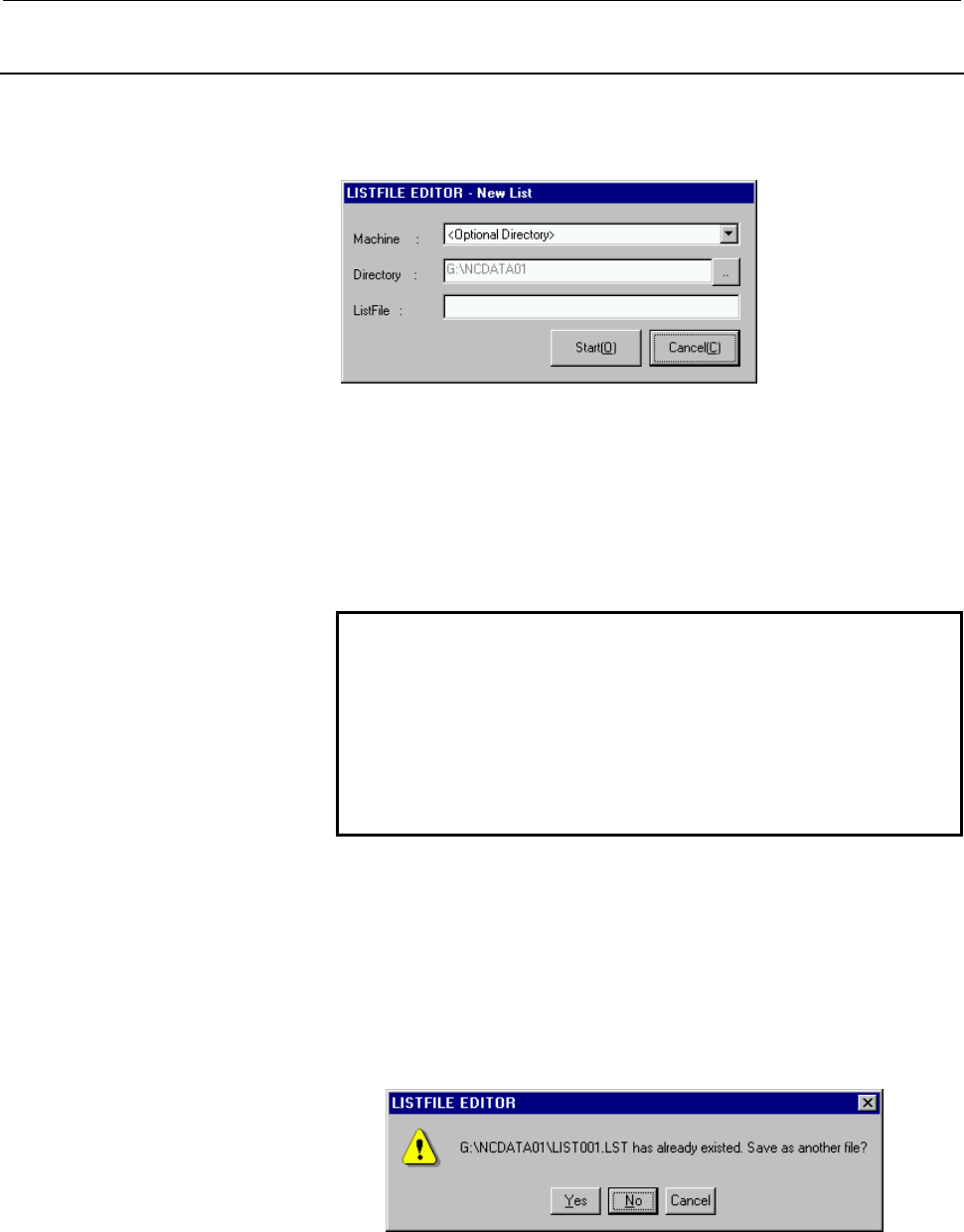

To create a new List File, click the [New] command in the [File] menu.

The [New] dialog box appears.

1 Select the directory for saving the List File from the [Machine]

combo box.

If you select a machine name in the [Machine] combo box, the

default directory of the machine selected in the [Directory] text

box is displayed.

If you select <Optional Directory> in the [Machine] combo box,

select the directory by the button to the right of the [Directory] text

box.

NOTE

Select the machine name at [Machine], and display

the default directory of the machine to communicate

with at [Directory].

If you select <Optional Directory> at [Machine],

specify a directory other than the default directory at

the [Directory] button and create a List File, you will

no longer be able to call the List File from the NC.

2 Enter the name of the new List File in the [List File] text box, and

press the <Start> button. The file name does not need a file

extension. The List File extension set in the Machine Setup screen

is added to the file name according to the machine selected in the

[Machine] combo box.

To edit an existing file, enter the file name in the [List File] text

box, and press the <Start> button.

When you specify an existing file, a confirmation dialog box for

checking if it is OK to delete the file and create a new file appears.
