F.SETTING UP PC APPENDIX B-75074EN/04

- 574 -

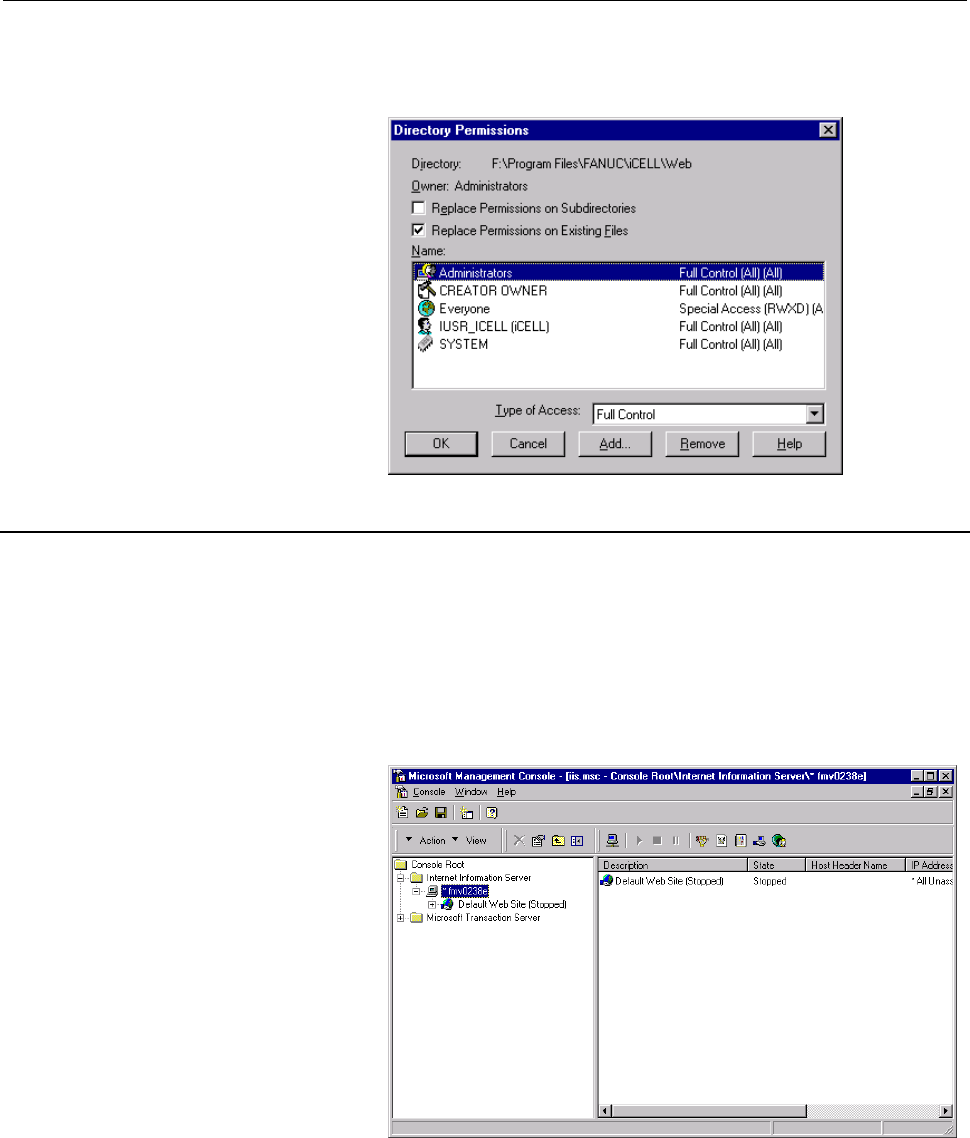

2. In the dialog box shown above, click [OK] to give the

"IUSR_ICELL" user the [Full Control] access permission for the

[WEB Directory.]

F.1.2 Constructing Web Sites for Windows NT

Making the i CELL Web function operable requires constructing a Web

site on IIS.

1. Select [Start] → [Program] → [Windows NT 4.0 Option Pack] →

[Microsoft Internet Information Server,] and click [Internet

Service Manager] to start the Microsoft Management Console.

2. Stop the [Default Web Site], which is initially set up, by selecting

it with the mouse, right-clicking, and selecting Stop.
