B-75074EN/04 APPENDIX B.NC SETTING

- 493 -

B.2.3 Setting the FTP File Transfer Functions

This subsection describes the setting required when an FTP server is to

be set on a PC and the setting information is to be set as parameters for

the Data Server (to use the FTP file transfer function).

B.2.3.1 Setting the FTP file transfer function parameters

The Ethernet Parameter screen is used to set parameters that are needed

to run the FTP file transfer functions.

Display

Procedure

1 Place the CNC in MDI mode.

2 Press function key

SYSTEM

3 Press the Continuation menu key at the bottom right of the soft key

menu.

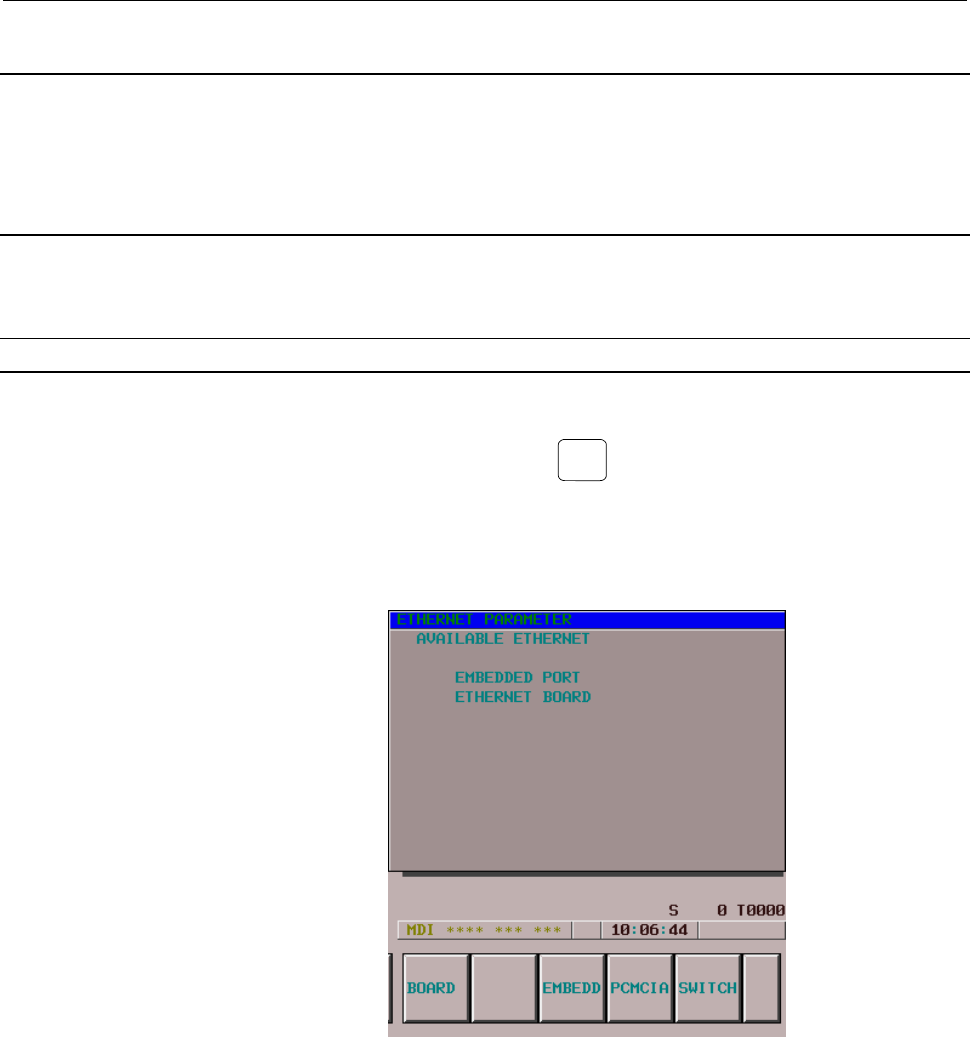

4 When you press soft key [ETHPRM], the "Ethernet Parameter"

screen appears.

The Ethernet functions currently available are displayed.

The upper row displays the usable embedded Ethernet function

device. The embedded port or PCMCIA card is displayed.

The lower row displays the usable Ethernet option boards. When

no option board is installed, no information is displayed.

5 By pressing the [EMBEDD] soft key, the parameters for the

embedded Ethernet port can be set.

By pressing the [PCMCIA] soft key, the parameters for the

PCMCIA Ethernet card can be set.
