B-75074EN/04 SETTING 3.MAIL

- 187 -

3.3 MAIL CONFIGURATION

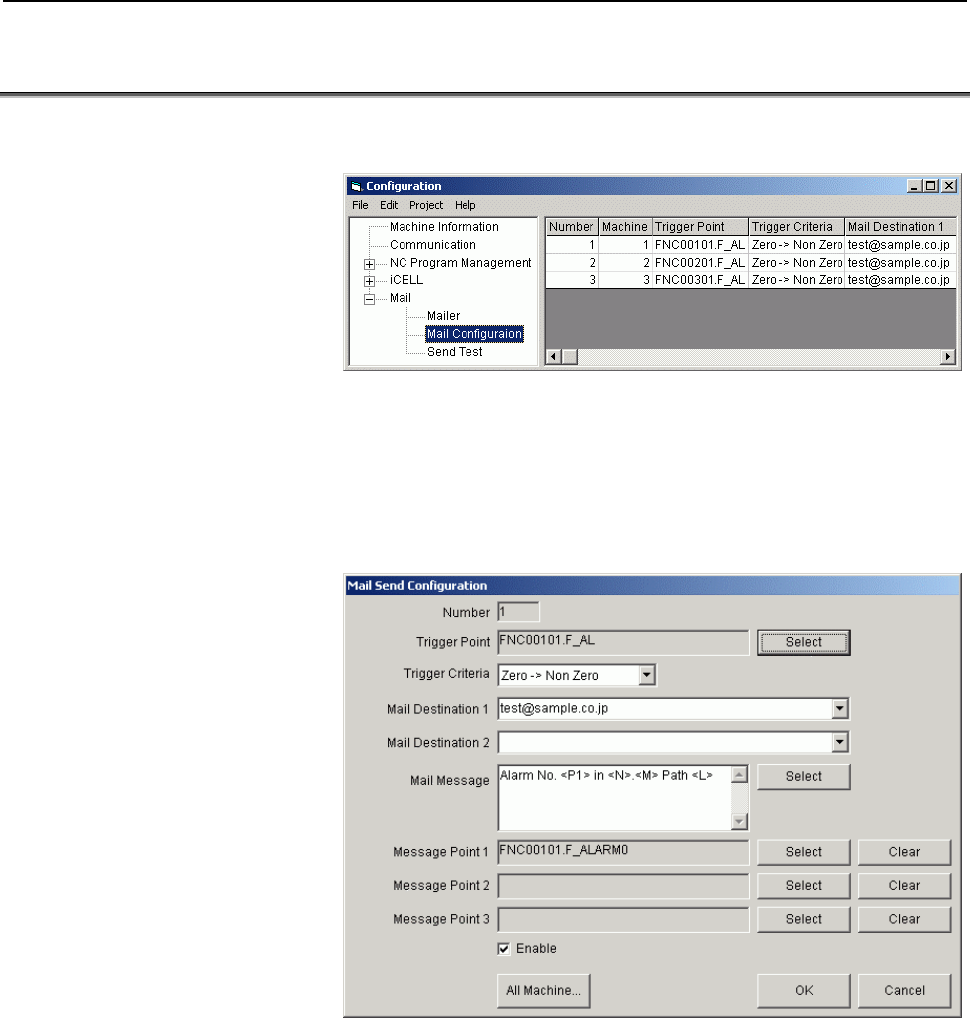

Selecting Mail and Mail Configuration from the tree lists the currently

registered settings for mail transmission in the grid.

To add a new mail transmission setting, select Edit from the menu bar,

then New from the Edit menu.

To delete a mail transmission setting, click a desired row in the grid,

and select Edit from the menu bar, then Delete from the Edit menu.

If you double-click a row in the grid, or if you click a row in the grid and

select Edit from the menu bar, then Property from the Edit menu, the

Mail Send Configuration dialog box appears.
