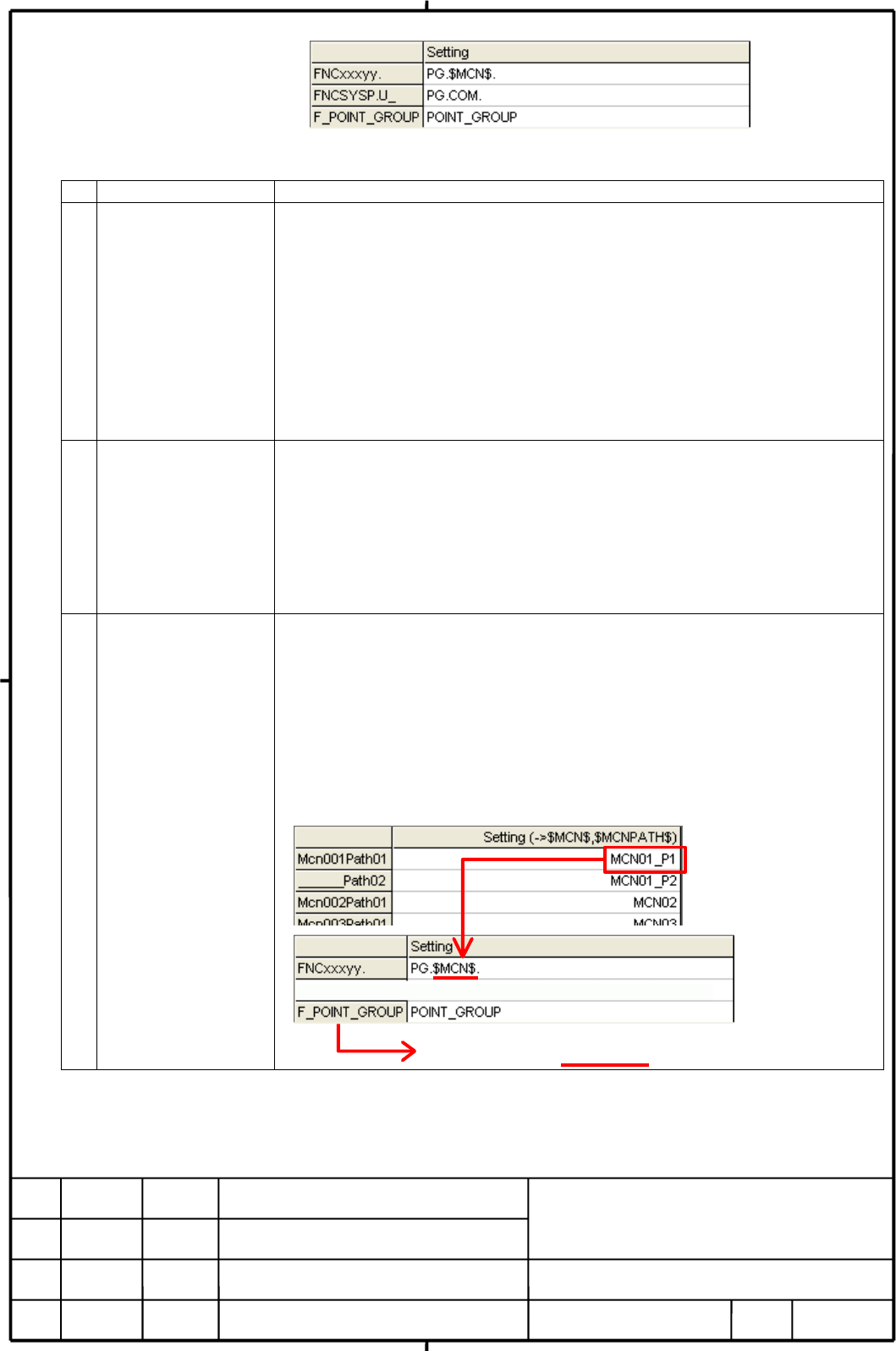

The settings are as follows:

Control point name rule (3) Point-group point

No Items (default) Description

FNCxxxyy.

(FNC$MCN$.)

Machine-specific Point Group Control Point name rule setting

If any Point Group Control Point name is to be created with Point

Customization, the point name rule "FNCxxxyy.U_zzzz" is applied. As

described earlier, xxxyy is a 3-digit machine number and a 2-digit path

number, and a point name may be specified for the identifier zzzz.

For the setting for "FNCxxxyy.U_", set the character string to replace

"FNCxxxyy.U_" of the point name rule above. This setting requires the

character string $MCN$, which is replaced by a machine number during point

name setting. $MCN$ is replaced by the machine number of each machine

with a path number of 1 of the values set for "xxxyy" (item B) under <1> Rule

for data communication point name.

FNCSYSP.U_

(FNCSYSP.U_)

Common Default Point Group Control Point name setting

When a machine-independent, common Point Group Control Point name is

created with Point Customization, "FNCSYSP.U_zzzzz" is created. A point

name may be specified for zzzzz.

For the setting of "FNCSYSP.U_", set the character string for use in place of

FNCSYSP.U_. Note however that $MCN$, which is replaced by a machine

name, and $MCNPATH$, which is replaced by a machine name + path name,

cannot be used.

F_POINT_GROUP

(F_POINT_GROUP

)

Machine-specific Default Point Group Control Point name setting

When a data communication point is created for a machine, the Default Point

Group Control Point "FNCxxxyy.F_POINT_GROUP" is created.

For the setting of "F_POINT_GROUP", set the character string for use in place

of F_POINT_GROUP. Note however, that $MCN$, which is replaced by a

machine name, and $MCNPATH$, which is replaced by a machine name +

path name, cannot be used.

Example: If the following is set for "xxxyy" (item B) under <1> Rule

for data communication point name

Converted into PG.MCN01_P1.POINT_GROUP.
