B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 285 -

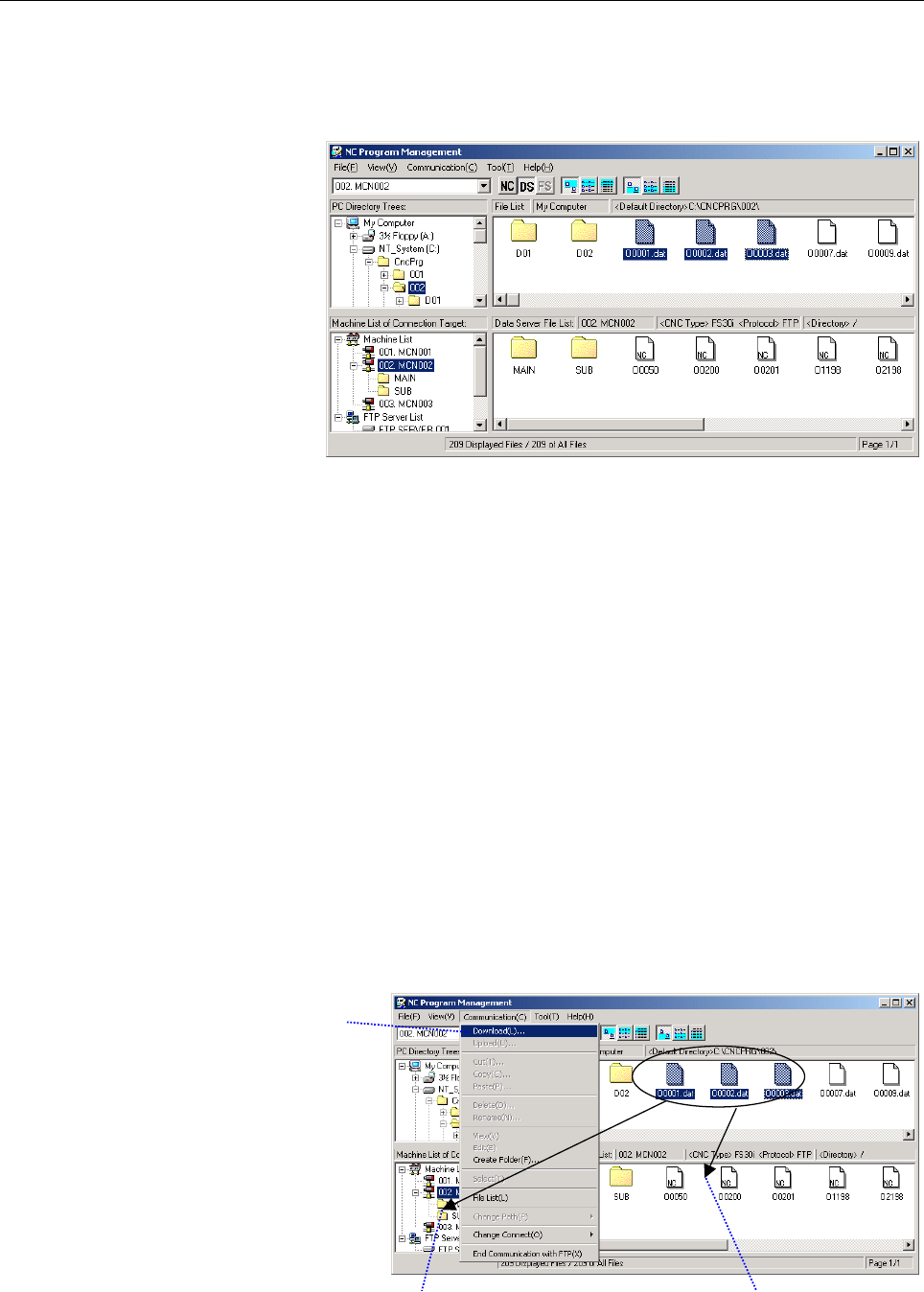

Downloading a file to the connection destination

1 Select the file you want to download from the PC side File List.

You can select more than one file by clicking files while pushing

the [Ctrl] key.

2 Perform one of the following operations:

A) Drag and drop the file selected in the PC side File List to the

File List of the connection destination. When the file is

dropped to a blank space or a file in the File List of the

connection destination, the file is downloaded to the folder

for which the File List of the connection destination is

displayed. When the file is dropped to a folder displayed in

the File List of the connection destination, the file is

downloaded to the folder.

B) Drag and drop the file selected in the PC side File List to a

folder under the name of the connected machine in the

Machine List of Connection Target.

C) In the [Communication] menu or the menu displayed by

right-clicking on the selected file, click the [Download]

command.

When a file is selected in the File List of the connection

destination, the file is downloaded to the folder for which the

File List of the connection destination is displayed.

When a folder is selected in the File List of the connection

destination, the file is downloaded to the folder.
