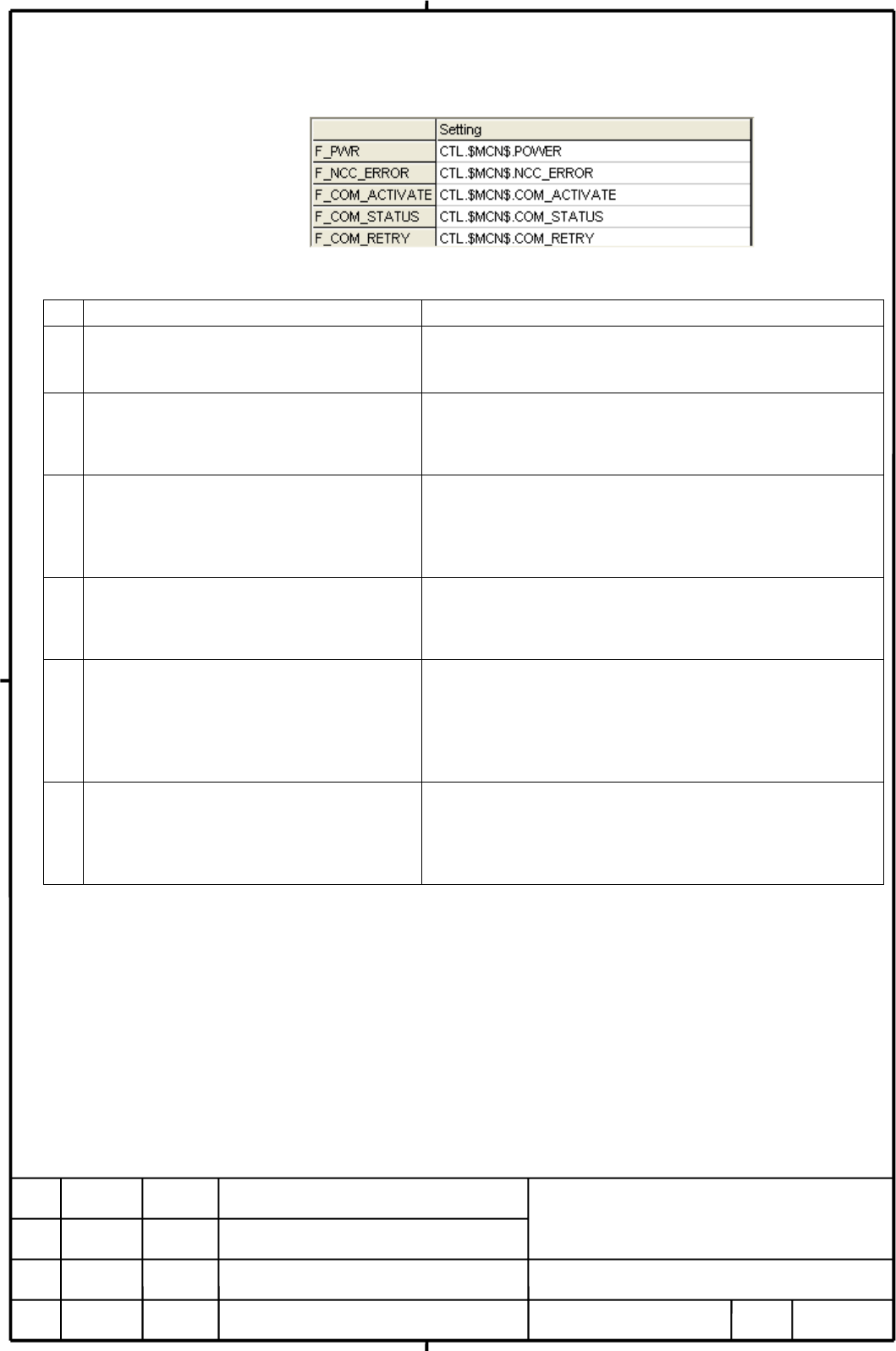

<Save> button is clicked in this state, an error message appears, and storage

is canceled; correct the point name rule.

The settings are as follows:

Control point name (1) Machine point

No Item (default) Description ($MCN$ is required.)

1 F_PWR

(FNC$MCN$.F_PWR)

Power status monitor point name rule setting

Set the name rule for a point for representing the power

ON/OFF status of each machine. Be sure to set this item.

2 F_NCC_ERROR

(FNC$MCN$.F_NCC_ERROR)

Error message storage point name rule setting

Set the name rule for a point for indicating an error that has

occurred in CNC Communication Mode. Even if this

function is not used, be sure to set this item.

3 F_COM_ACTIVATE

(FNC$MCN$.F_COM_ACTIVATE)

Communication enable instruction point name rule setting

Set the name rule for a point for instructing whether to

perform communication with the CNC to which CNC

Communication Mode is connected. Be sure to set this

item.

4 F_COM_STATUS

(FNC$MCN$.F_COM_ STATUS)

Communication status monitor point name rule setting

Set the name rule for a point for checking a response to a

communication enable instruction point. Be sure to set

this item.

5 F_COM_RETRY

(FNC$MCN$.F_COM_ RETRY)

Communication reconnection instruction point name rule

setting

Set the name rule for a point for using the communication

reconnection function by specifying a point name in CNC

Communication Mode. Even if this function is not used,

be sure to set this item.

6 F_COM_PSET_NOTIFY

(FNC$MCN$.F_COM_PSET_NOTIFY)

Communication start notification point name rule setting

Set the name rule for a point for using the communication

reconnection function by specifying a point name in CNC

Communication Mode. Even if this function is not used,

be sure to set this item.
