9.4.2 Outputting History Data

Outputting operation history data

History data can be output in text image to an arbitrary folder according

to the procedure below.

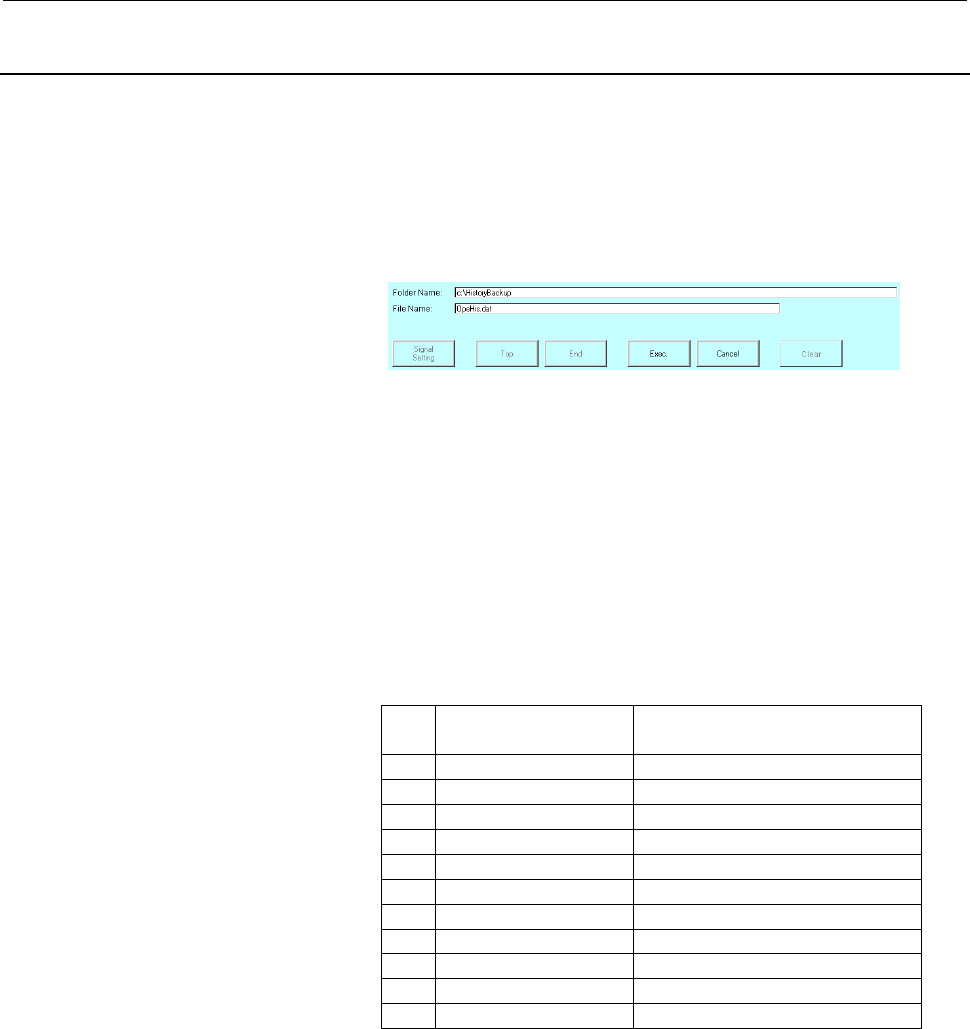

<1> Click the [Output] button. The screen display changes as shown

below.

The keytop of the [Output] button changes to [Exec.].

<2> Specify a desired folder name and file name, then click the [Exec.]

button.

If no extension is specified, the following extension is used:

.ophis

Format of operation history data

The following three items, separated by spaces, are output:

<1> Record type

<2> Data for record type

<3> Data displayed on the NC screen

The following values are set for the first and second items:

0 1st item

Record type

2nd item

Data for record type

0 MDI in path 1 1 Power-on, 2 Others

1 Signal in path 1 Always set to 0

2 Alarm in path 1 Always set to 0

3 Date 1 Power-on, 2 Others

4 Time 1 Power-on, 2 Others

5 MDI in path 2 1 Power-on, 2 Others

6 Signal in path 2 Always set to 0

7 Alarm in path 2 Always set to 0

10 MDI in path 3 1 Power-on, 2 Others

11 Signal in path 3 Always set to 0

12 Alarm in path 3 Always set to 0

Data for the third item is displayed on the screen.

Example of operation history output data

0 1 <RESET>

0 1 <DELETE>

3 1 04/02/24

4 1 10:47:26

2 0 PS/0100

0 0 <SYSTEM>
